EFS MRP 2.5 50mm Lift Kit - Nissan Patrol GU Wagon (1997-2016)



EFS MRP 2.5 Monotube Remote Performance Remote Reservoir Suspesnion

4WDING  •  ROAD  •  TOWING CARAVANS & CAMPERS



At EFS our vision has always been to create a product that offers the best performance while delivering the smoothest ride possible.



With the MRP 2.5 that vision is now a reality.

Embrace green and get ready for the ride of your life!

You can now fully customise your ride to your needs, to maximise comfort and performance in all types of terrain.





• Monster 2.5" Shock

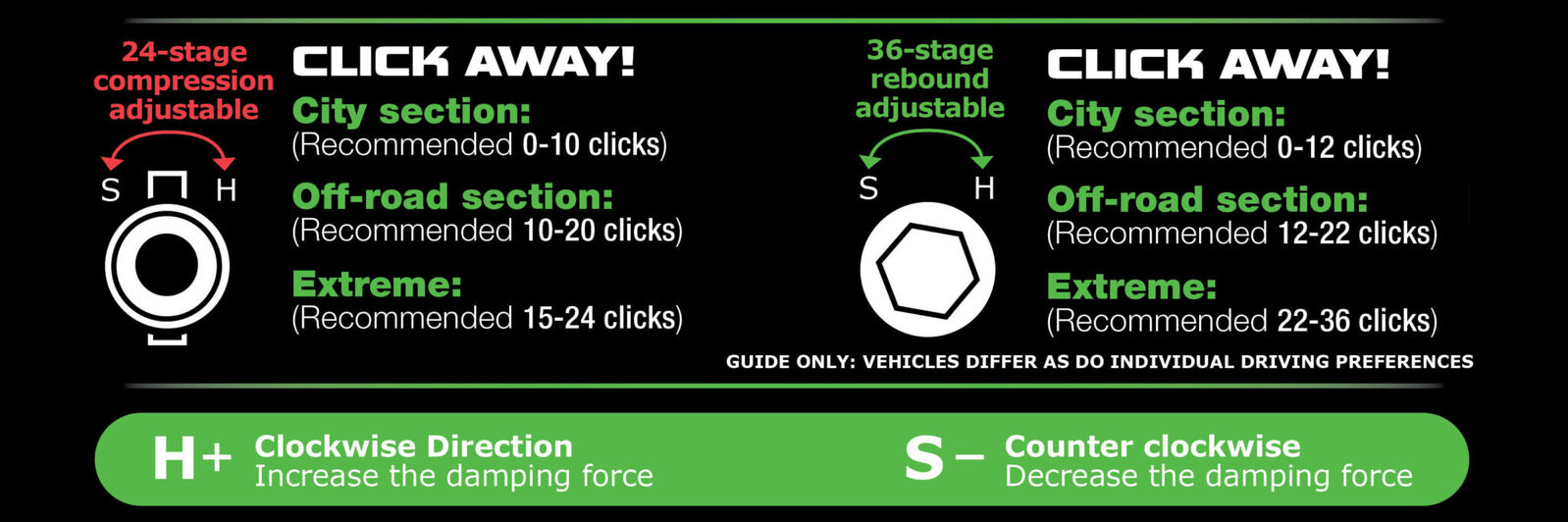

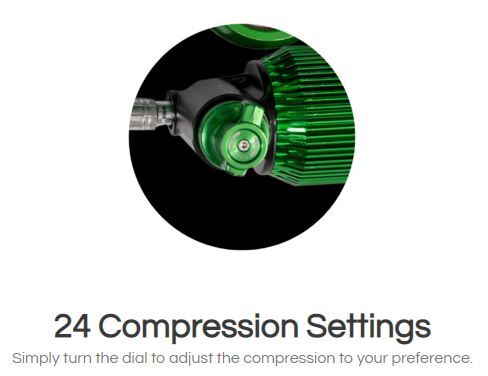

• 24 Stage Compression Adjustment

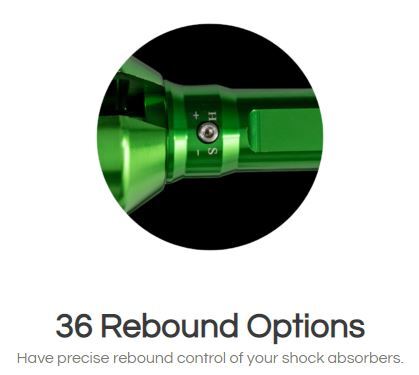

• 36 Stage Rebound Adjustment

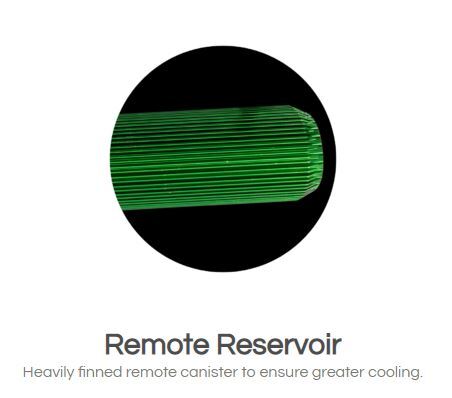

• Teflon Coated Braided Hose to the remote canister when not piggy backed
• Heavy duty rubber bonded bushes top and bottom
• Seamless steel tube body honed for perfect sealing
• Zinc plated body built to last
• Green anodized, CNC machined 6061-T6 billet aluminium
• FUCHS Suspension Fluid for improved performance at all temps
• Heavy-duty, powdered steel floating piston + 6061-T6 hard anodized high flow aluminium piston
• High quality NOK seals – main seal, wiper seal, scraper seal

• 1 year warranty

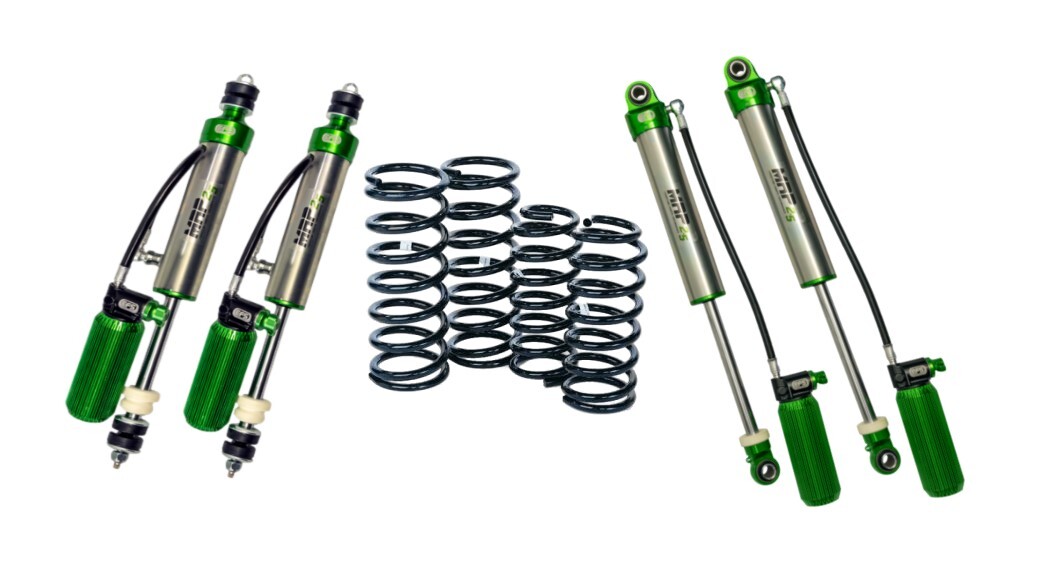

The Kit Includes:

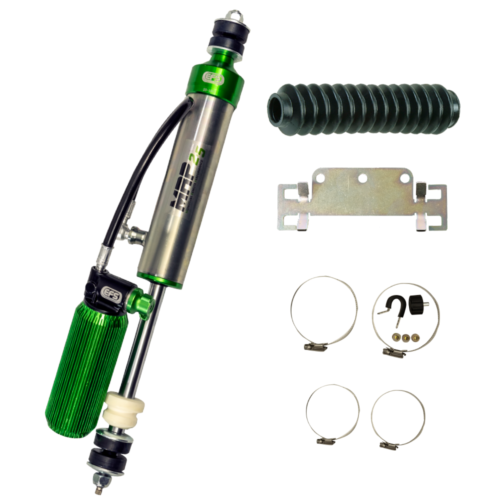

• 2x EFS MRP 2.5" Front Shocks
• 2x EFS Raised Coil Springs Front

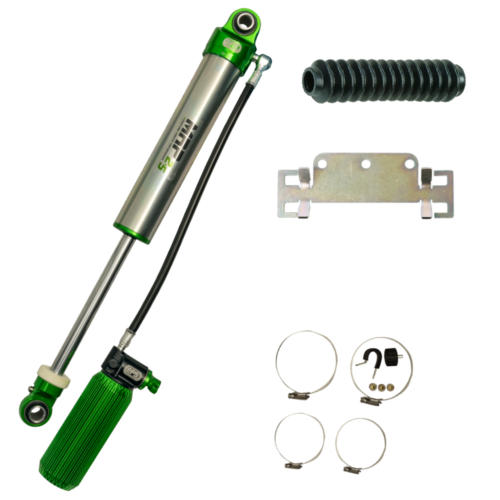

• 2x EFS MRP 2.5" Rear Shocks
• 2x EFS Raised Coil Springs Rear







Kit Suits:

• Nissan Patrol GU Wagon (1997-2016)







Important Notes for setting up your Vehicle Correctly:

• When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
• Do Not include “Future Planned Mods” into your weight calculations if they are not fitted to the vehicle.
• Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
• Do not put “Occasional” Loads into your "Constant" Load determinations.
• Selecting a load rating that is too heavy for your setup will result in Poor Flex Offroad, Very Rough Ride, Compromised suspension Travel, and will cause damage to your new Shock Absorbers and other components by pushing them outside of their intended range & Void the Warranty on them.
• If you are in any Doubt, Please click on the link below on how to setup your suspension correctly

            https://www.autopartsco.com.au/blog/blog/how-to-set-up-your-suspension-correctly/





Please Note:

• All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicle’s setup and accessories.
• Estimated Lift Height 50mm
