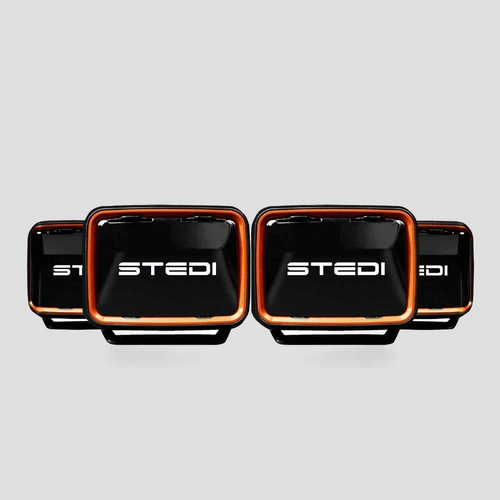

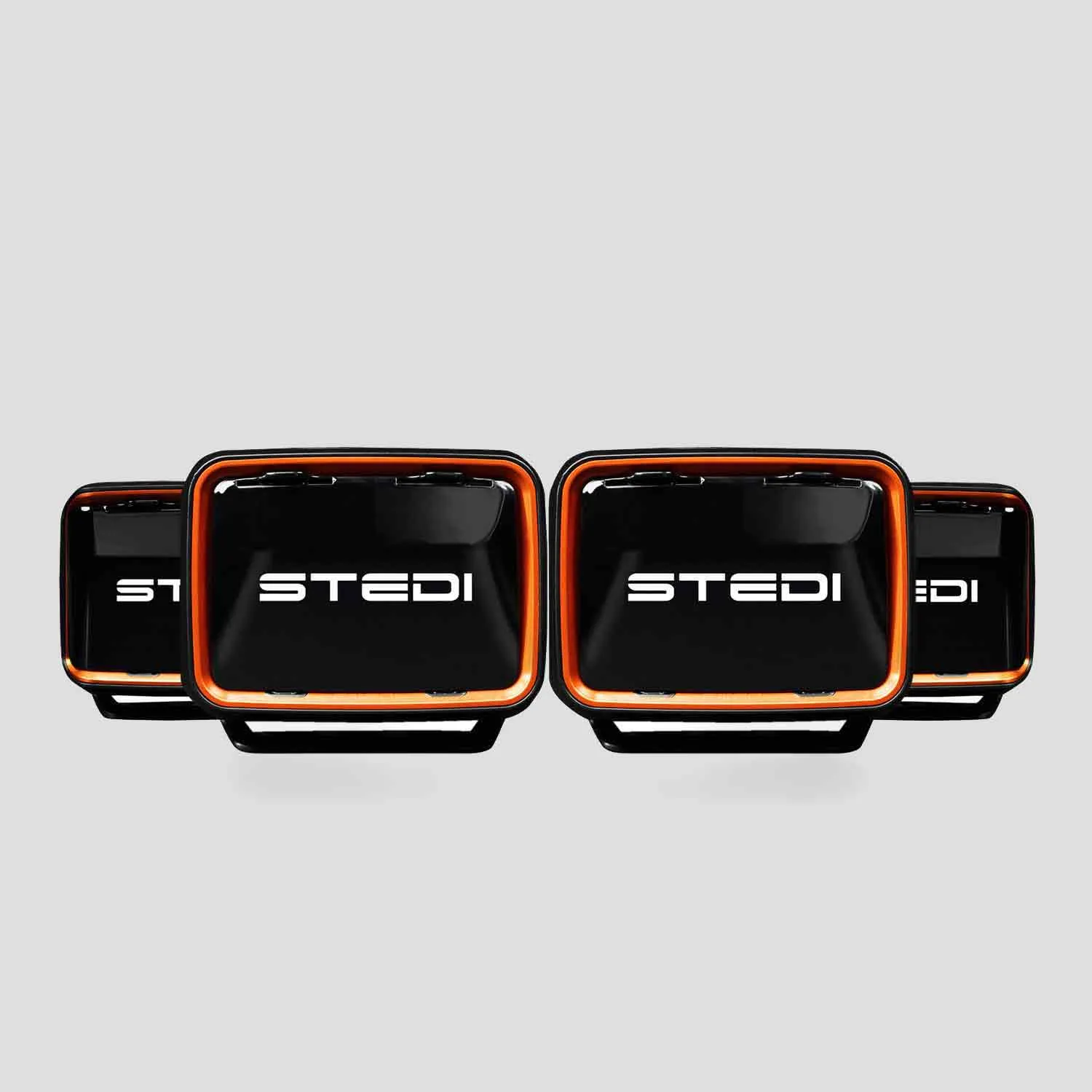

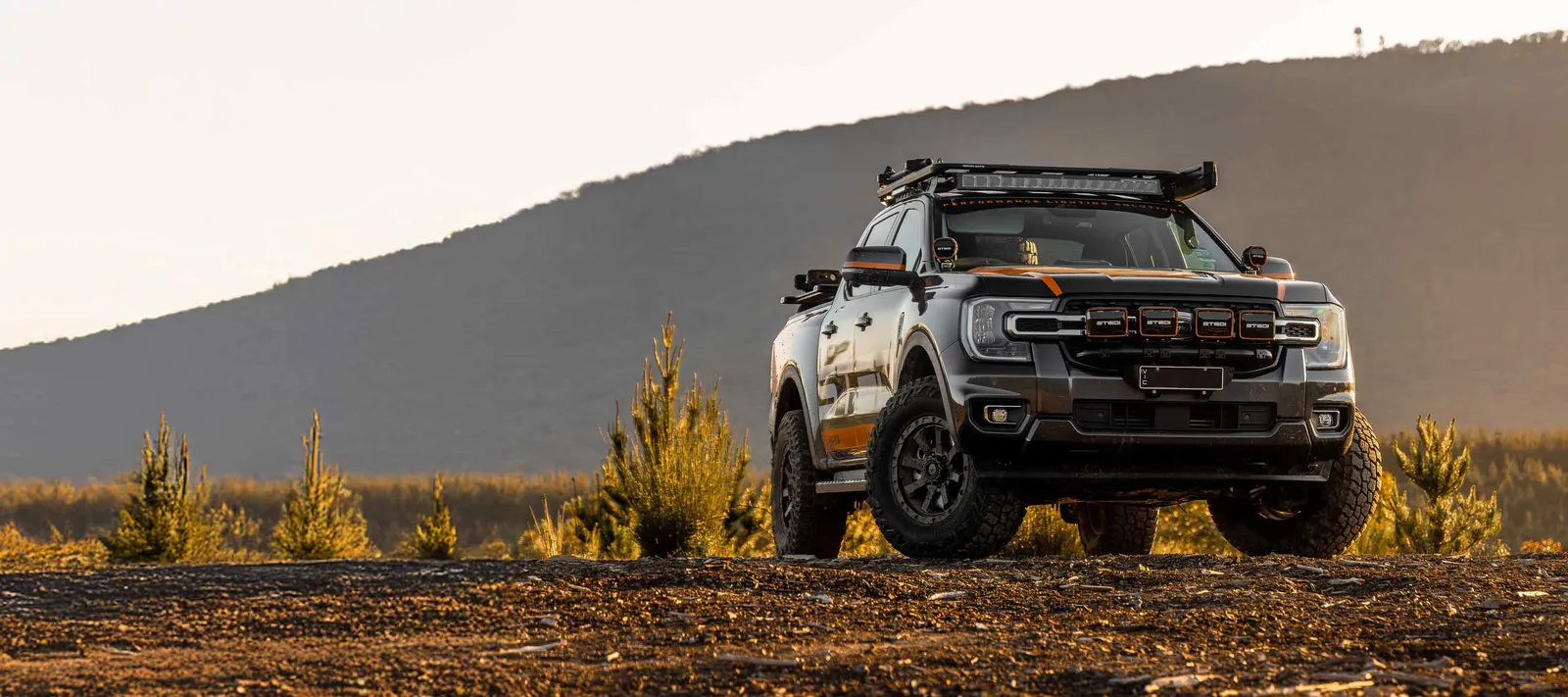

The Stedi Quad EVO LED Driving Lights Bundle groups Quad EVO centre and side modules with a Quad Connector Plug & Play SMART harness to give wide, long-range illumination for on- and off-road driving. Quad EVO is a modular driving light system built for broad distribution and improved thermal and mounting performance.
Features:
- Modular centre and side modules allow tailored beam control and widespread illumination.
- Combined centre and side configuration produces an extensive beam reach and a 210° distribution to illuminate peripheral zones as well as the road ahead.

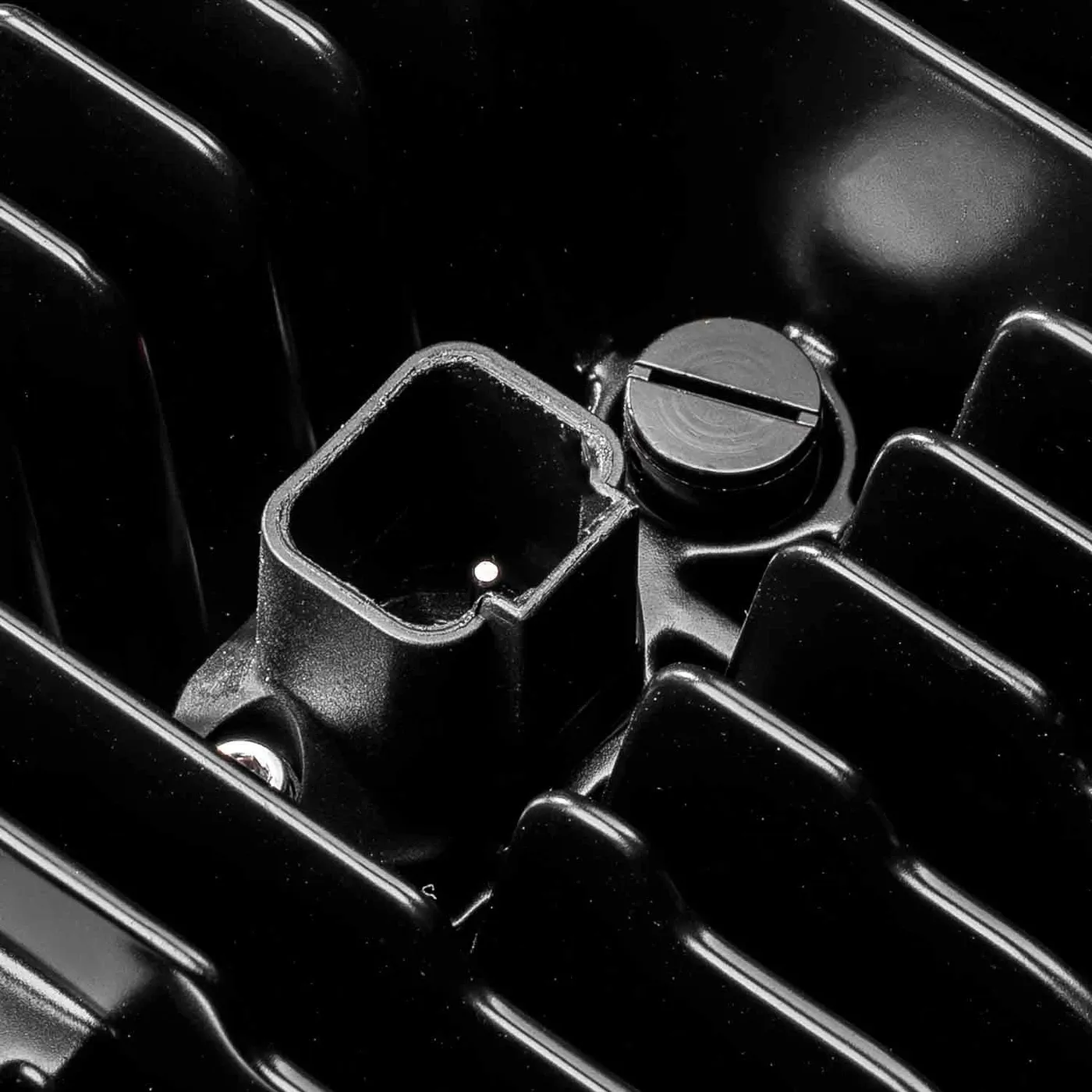

- Aluminium ADC12 housing and a finned thermal design improve heat dissipation and LED efficiency.

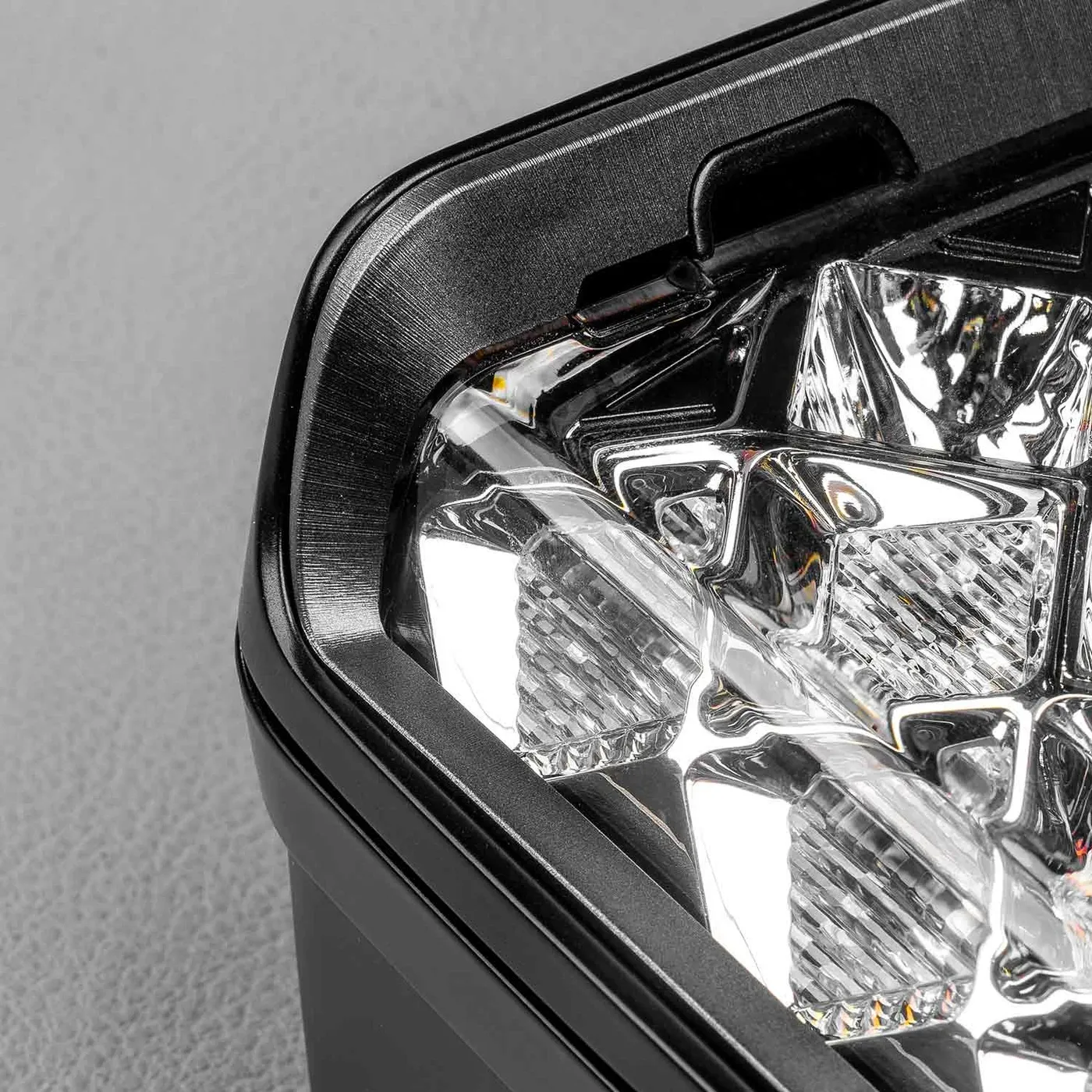

- Polycarbonate lens and stainless-steel mounting bracket for durability and suitability for exposed environments.

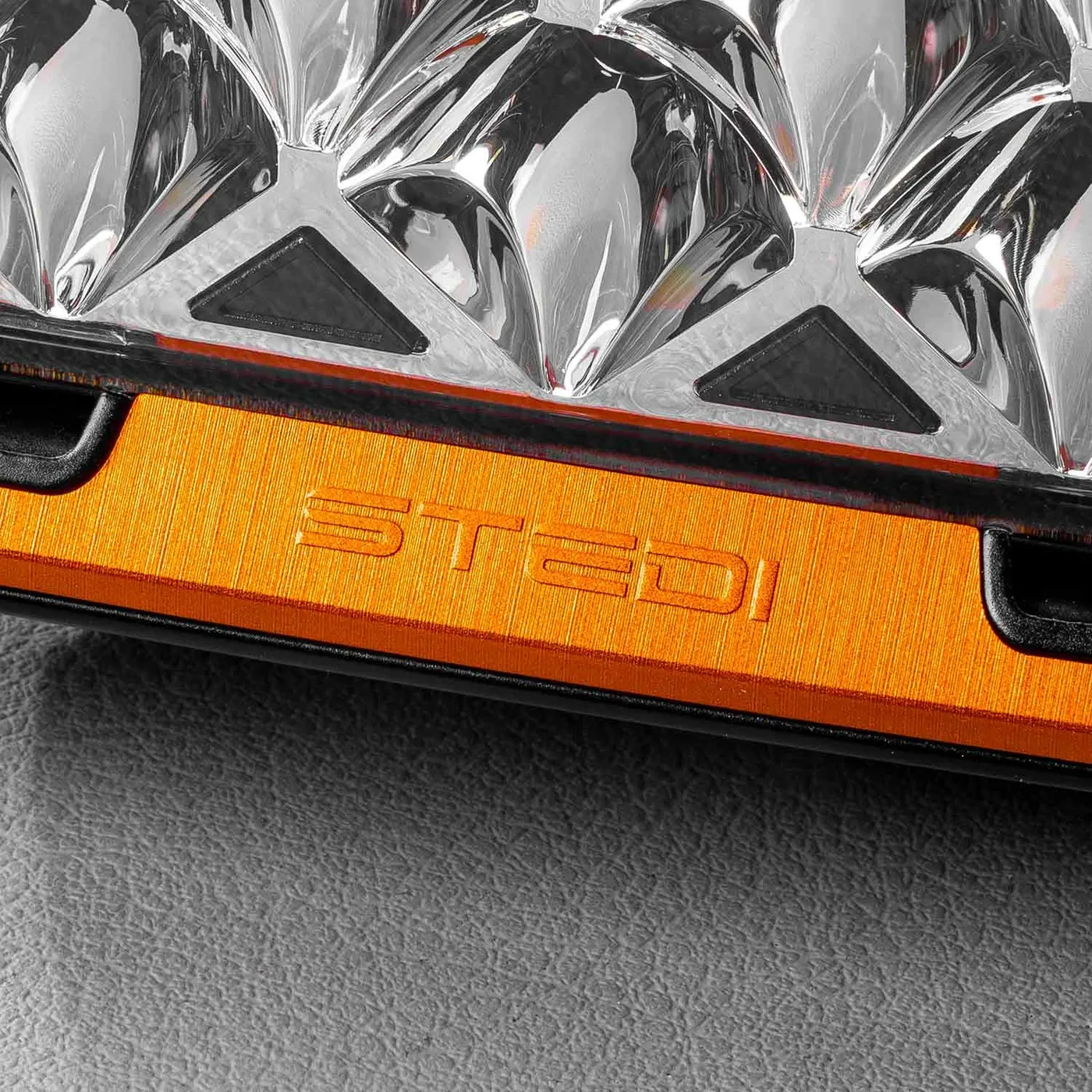

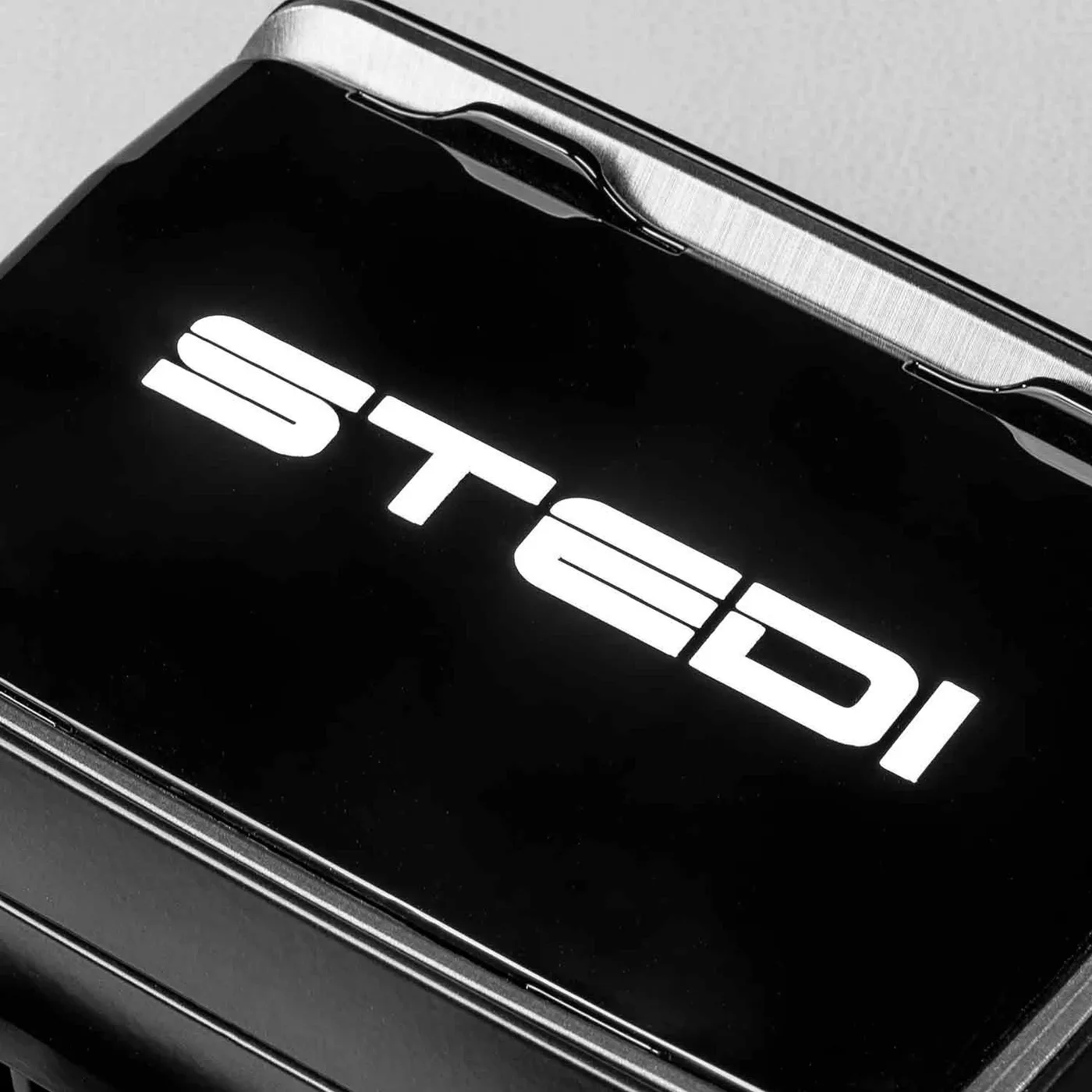

- Low-profile mounting brackets and snap-fit fascia enable neater installation and visual customisation.
Compatible with:
- Stedi Rally Bar
Kit Includes:
- 2 x Quad EVO LED Driving Light (Centre Module) (ST-01-QDE-002)
- 2 x Quad EVO LED Driving Light (Side Module) (ST-01-QDE-001)
- 1 x Quad Connector Plug & Play SMART Harness™ High Beam Driving Light Wiring (ST-31-DTP-004)
(QDE-BND)
| Colour temperature (CCT) | 5000K |
|---|---|
| Ingress protection | IP68 (Submersible up to 3m) |
| Lumen maintenance | 30,000 LM-80 |
| Beam pattern | Combo Beam 210° Widespread |
| Voltage compatibility | 12v - 24v |
| Operating temperature | -40°C to 60°C |
| Power draw | 144W (pair) |
| Raw lumens | 22,080 (pair) |
| Candela | 856,695 (pair) |
| SKU | QDE-BND |
| Brand | Stedi |
| Shipping Weight | 2.3500kg |
