Module Function:
Windows will be automatically closed if left open after the ignition has been turned off and the doors locked using the key remote. In addition windows can be controlled remotely by the key remote to open and close or pause during operation.
NOTE: The lock switch on the driver?s window can still be used to lock the rear and front passengers windows from opening/closing.
When the switch is in the locked position (on) the rear and front passengers windows are all isolated from all functions of the auto window module. Only the front drivers window will automatically close/open using the factory key remote.
For full remote control of all windows the lock switch on the driver?s window is required to be in the off position.
The harness is fully 100% direct plug & play connecting to all applicable factory connectors, so no splicing or connecting to any individual wires are required.

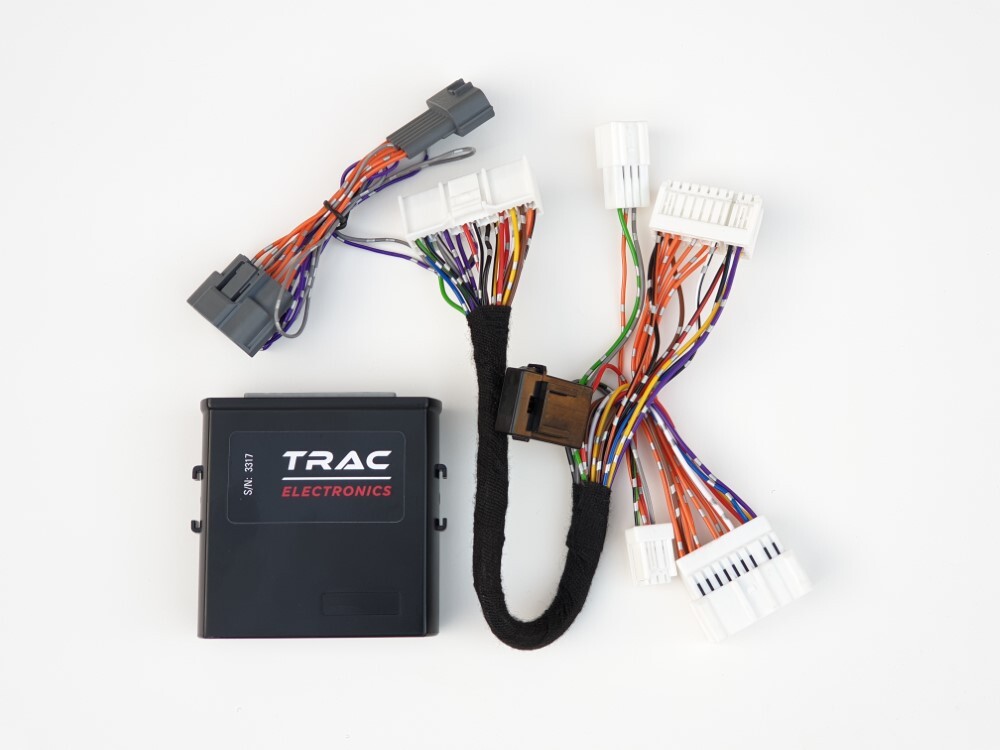

System includes:

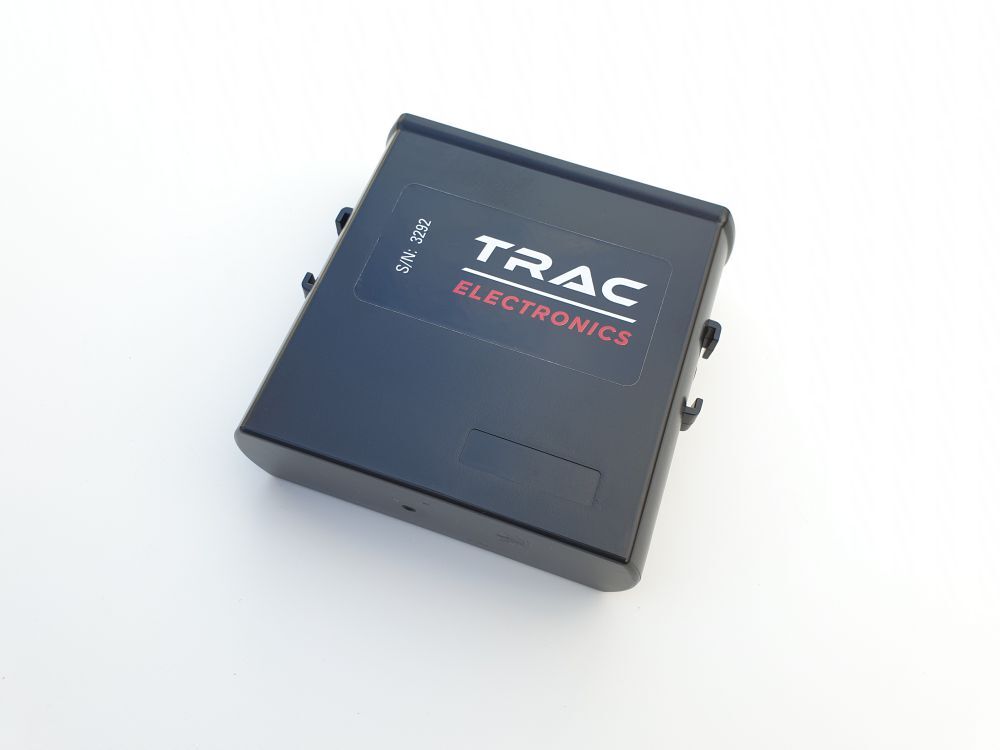

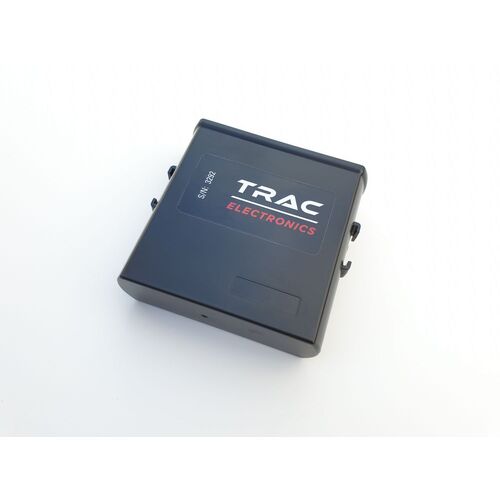

- P93 Module ? Auto windows

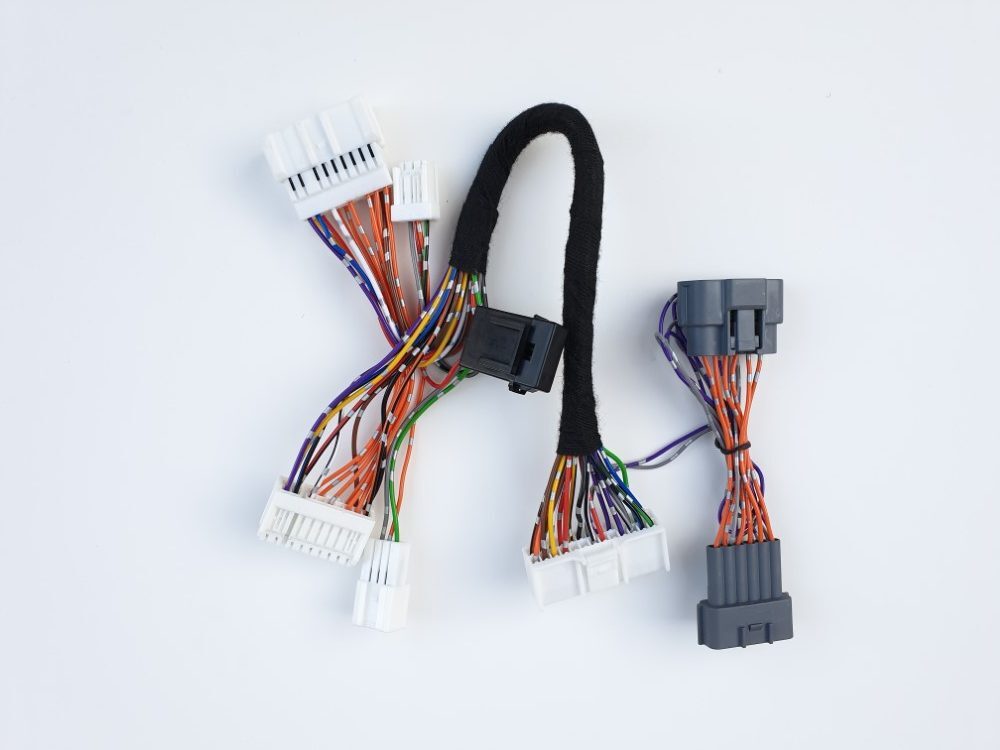

- Wiring harness with full 100% direct plug & play connectors (no splicing or connecting to any individual wires required)
- Adhesive pad (hook & loop) to attach module to inside of door trim
- Cables ties for securing the cables
Full comprehensive installation instructions are provided via downloadable link that is included on the packaging, simply scan QR code with mobile phone or tablet.
Operating features:
- Auto windows up:
After ignition is off and doors closed, press lock on the factory key remote, the front two and back two windows will close successively, if left down after ignition is turned off.
- Using the factory key remote to lower all windows, vehicle remains unlocked:
When engine is off, press unlock-lock-unlock the front two and back two windows will lower at the same time. To lock doors after this function, press lock on the key remote, to lock and close all windows press lock again at any interval.
- Pausing window opening / closing:
Press lock or unlock on the key remote during auto window operation, all windows will pause.
- When ignition is on all windows become one touch auto up/down function from the driver?s window switch panel by depressing each individual switch for half a second.
- Lock vehicle without closing windows:
After ignition is off and the doors are all closed, press unlock-unlock-lock, only locks the vehicle without lifting the windows.
