Trac Electronics - Camera Cable Mounting Brackets - Vehicle side

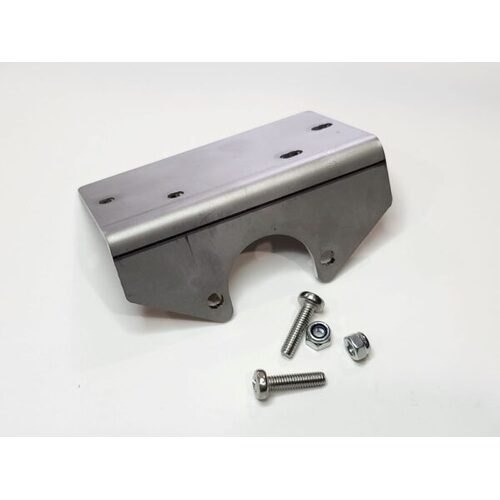

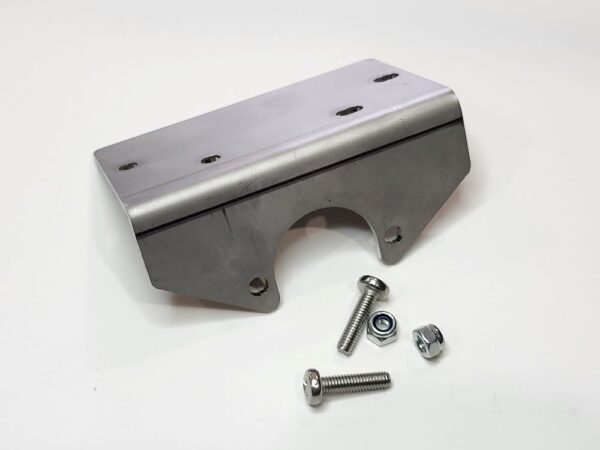

These brackets are folded on one edge for mounting the bracket to the vehicle and caravan/trailer, with pre-cut holes to mount the socket and additional holes for mounting to a flat surface.

Vehicle mounting bracket:

• Mounting position for socket (fixtures included)
• Additional holes for mounting 12 pin or 7 pin flat wiring socket (fixtures not included)

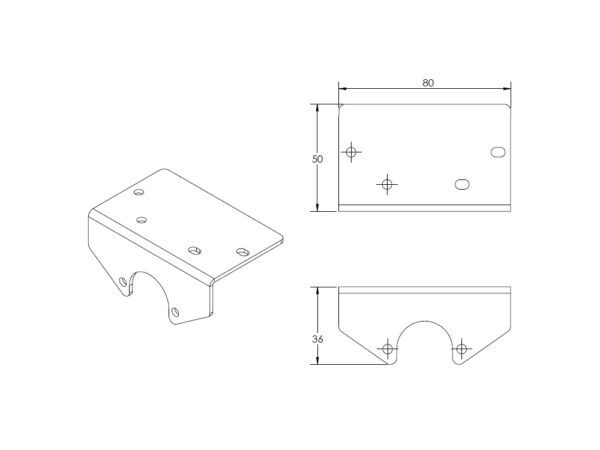

Dimensions (vehicle mounted):

• 80mm (w) x 50mm (d) x 36mm (h)
• 34.5mm centres on holes for mounting camera socket
• 67.50-69.50mm centre to centres (slotted on one side) on holes for mounting bracket
• 34-36mm centre to centres (slotted on one side) on holes for mounting bracket
