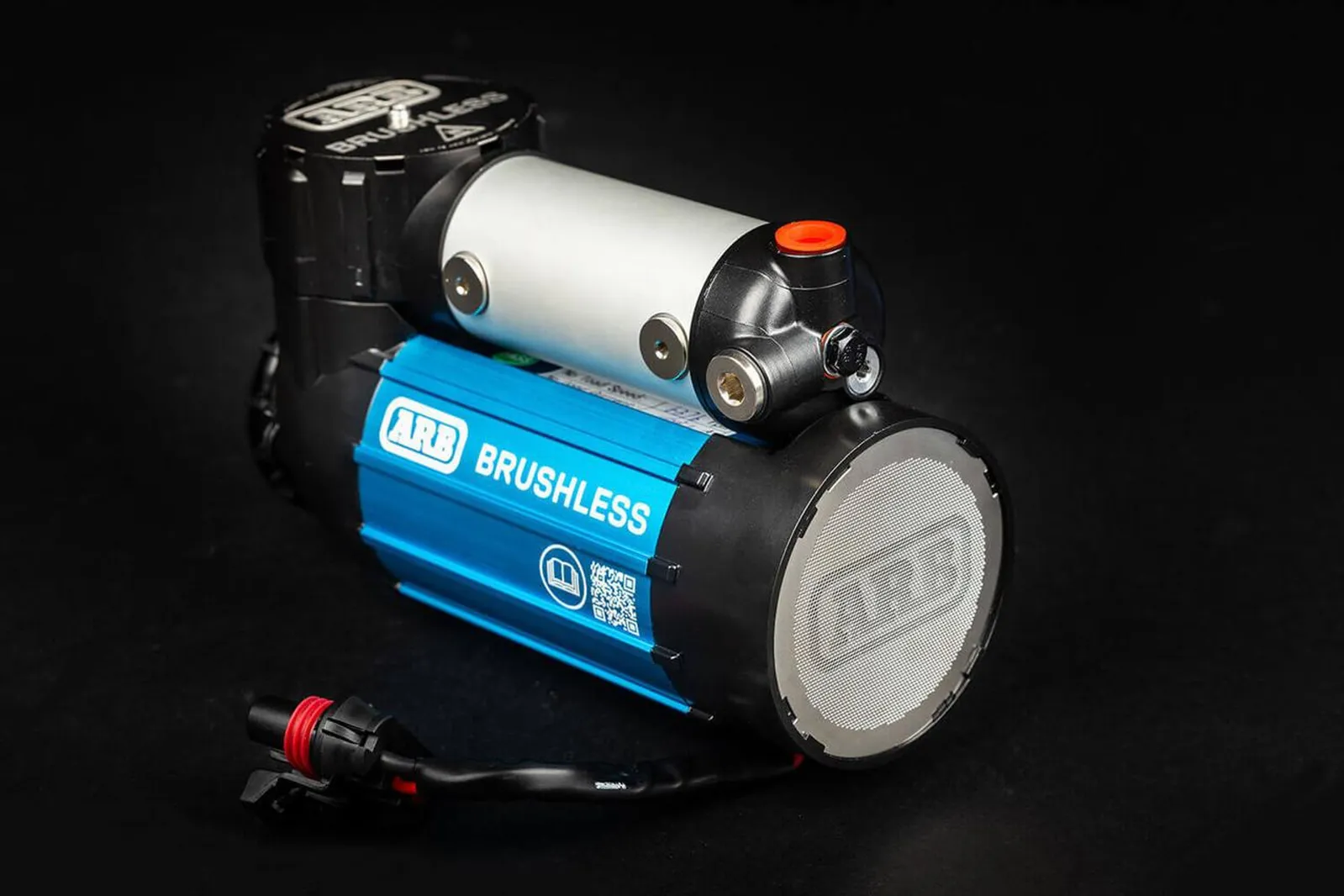

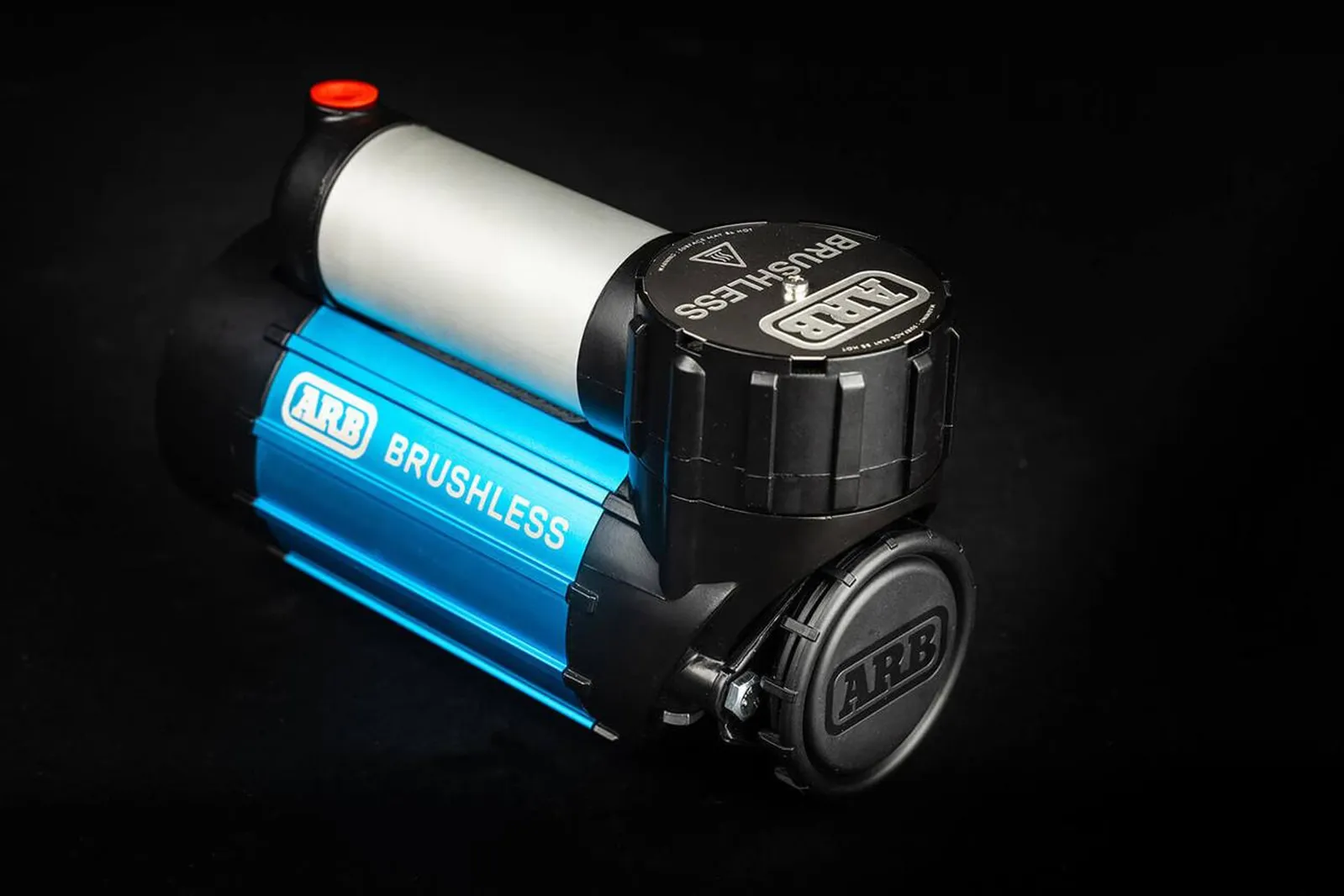

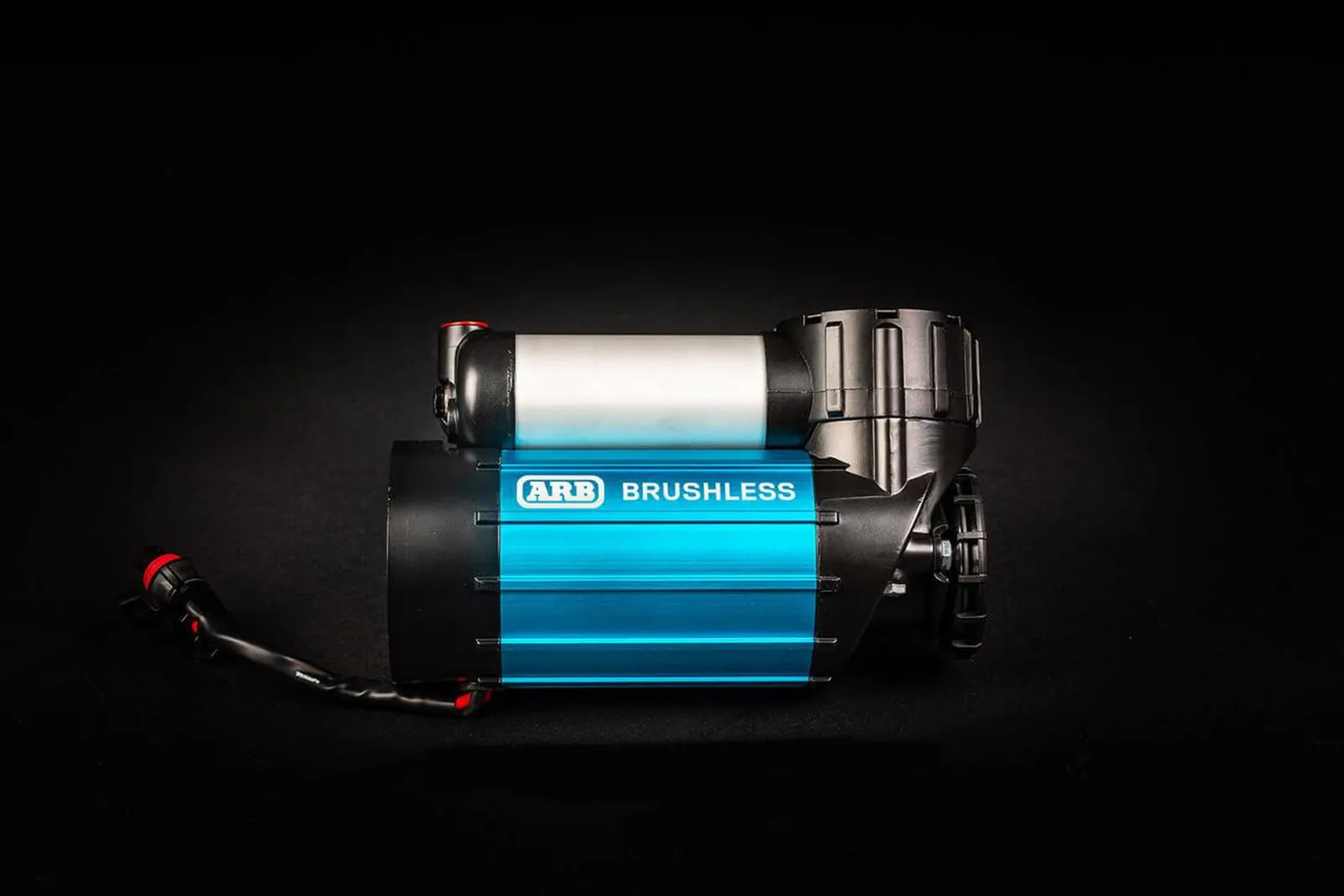

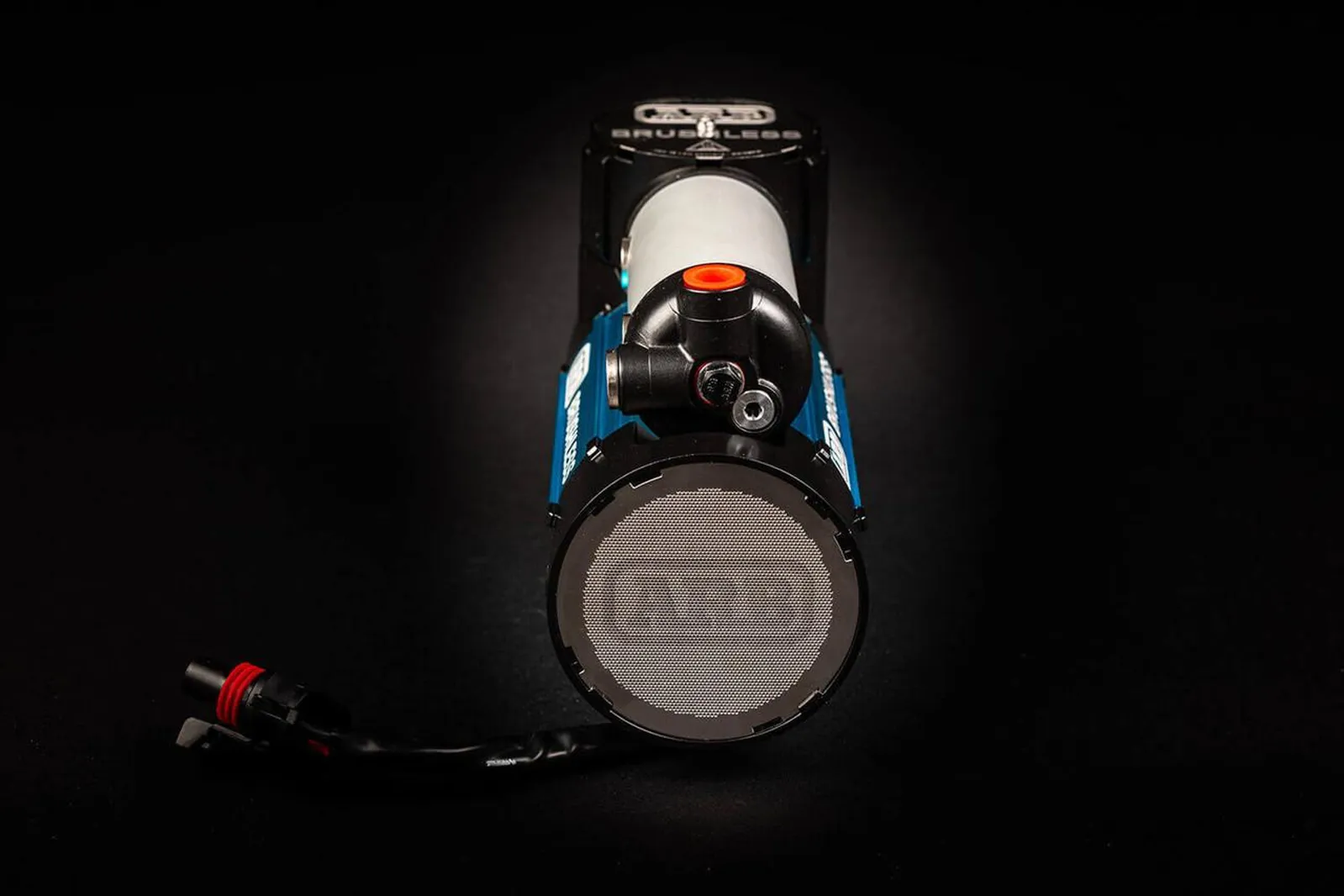

ARB Brushless Onboard Compressor

The ARB CKBLA12 is a high-performance 12 V brushless single onboard compressor designed for compact, permanent installations in 4WDs and touring vehicles.

Built with reliability and speed in mind, this compressor delivers exceptional airflow with reduced wear thanks to its brushless motor technology. Whether you’re inflating tyres, running Air Lockers, or using air tools, the CKBLA12 provides a powerful and efficient solution in a lightweight, maintenance-free package.

Features:

• Brushless Motor: High-efficiency design produces up to 130 L/min (no load) with minimal maintenance and extended lifespan.
• Smart Electronic Control: Optimises compressor output based on real-time load, temperature, and voltage.
• Integrated Overload Protection: Built-in safety systems protect against thermal overload, over-voltage, and excessive current draw.
• Post-Run Cooling: Automatically engages internal fan to cool the system after shutdown, enhancing duty cycle and longevity.
• Lightweight & Compact: Efficient airflow-to-weight ratio makes it ideal for tight engine bays or dedicated setups.
• Quick-Release Cam-Lock Mount: Allows fast, tool-free removal and installation for servicing or relocation.

Specifications:

• Voltage: 12 V
• No-Load Airflow: 130 L/min (4.59 CFM)
• Load Airflow: 88 L/min (3.1 CFM) @ 200 kPa
• No-Load Current Draw: 15 A
• Max Load Current Draw: 40 A
• Pressure Cut-Out: 135–150 psi
• Duty Cycle: 100% with active cooling

Kit Includes:

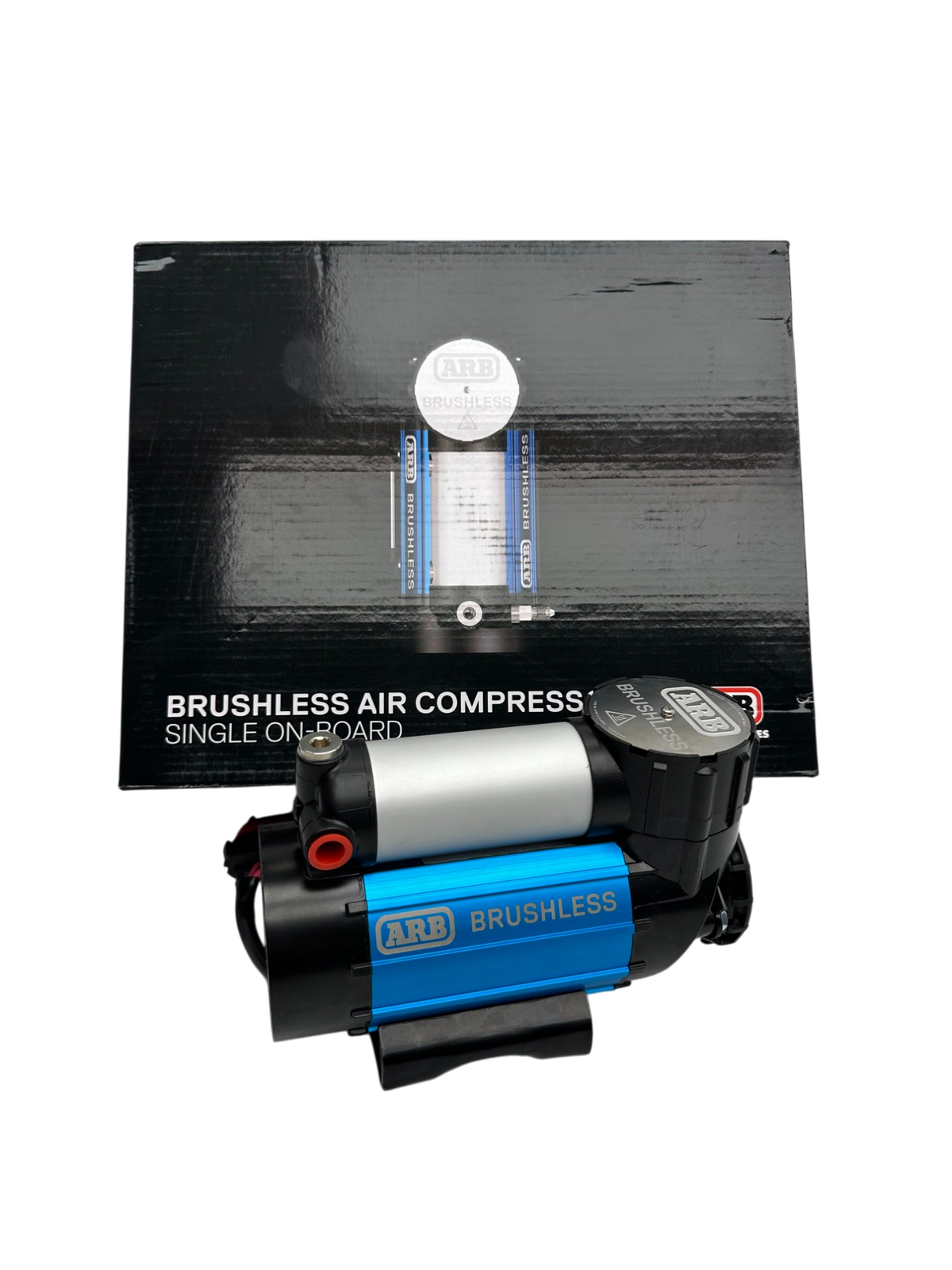

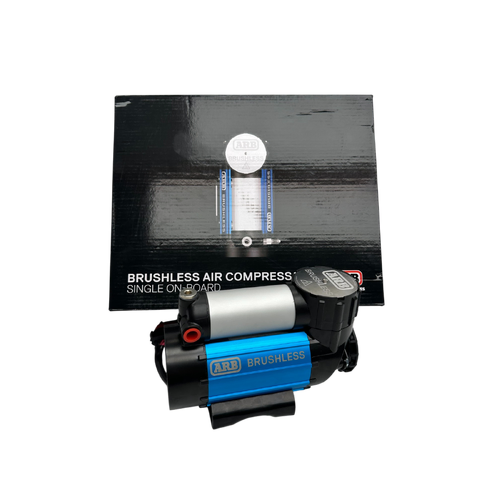

• ARB CKBLA12 Brushless Single Onboard Compressor
• Quick-release cam-lock mounting bracket

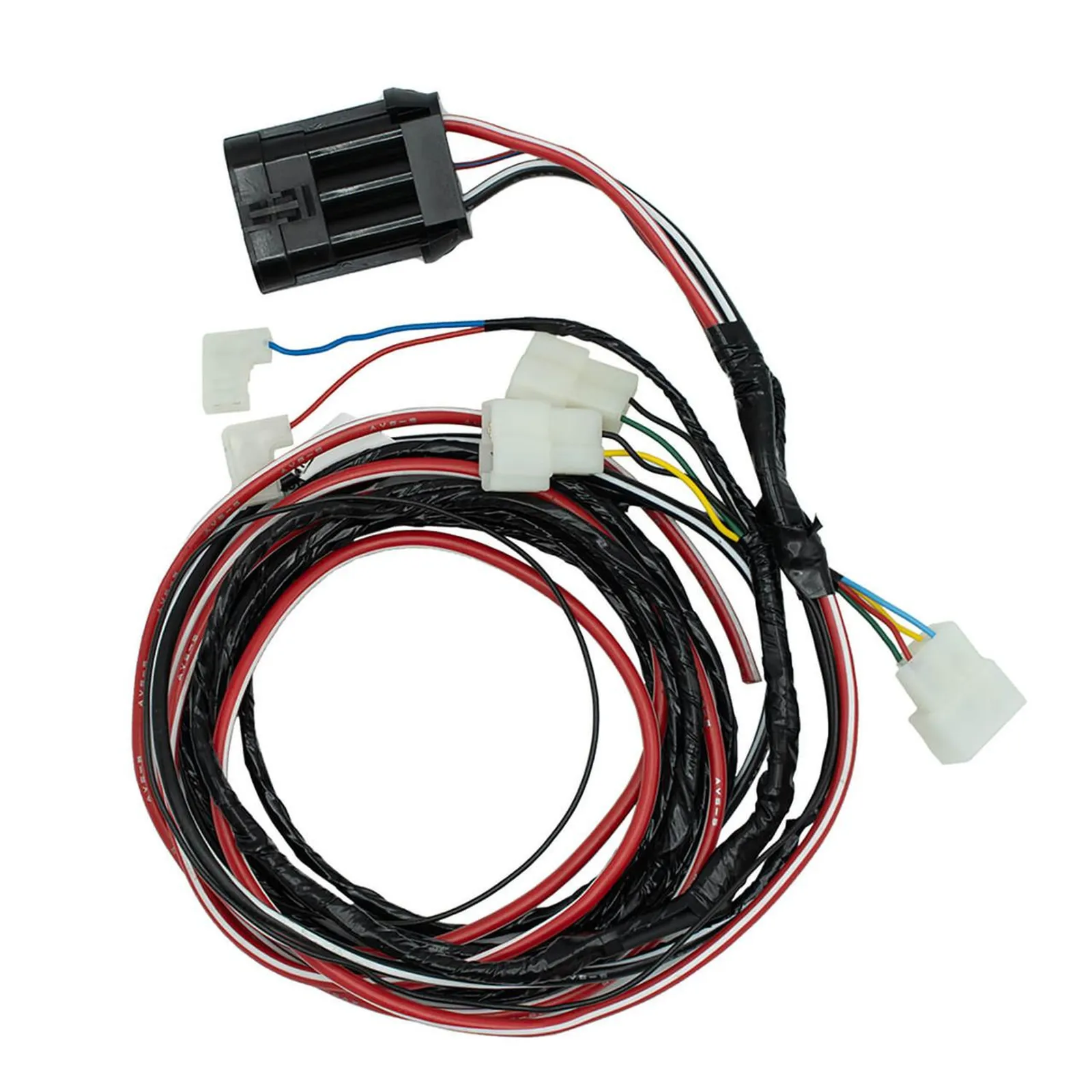

• Wiring harness and sealed connectors
• Air Locker solenoid mounting points
• Hardware and fitting instructions
