ARB Brushless Portable Air Compressor Kit

The ARB CKBLP12 is a premium 12 V portable brushless compressor kit designed for fast, reliable inflation on the go. Whether you're hitting remote tracks or touring the outback, this compact powerhouse ensures you're never caught short on air.

Built around the same high-output brushless motor used in ARB’s onboard systems, the CKBLP12 offers exceptional performance in a fully self-contained and portable setup. Housed in a durable carry case with all the essentials included, it's ready for action wherever you are.

Features:

• High-Performance Brushless Motor: Provides up to 130 L/min no-load airflow with enhanced reliability and reduced wear.
• Electronic Control Module: Smart onboard electronics adjust performance based on operating conditions, preventing overheating or voltage spikes.
• Integrated Thermal & Voltage Protection: Automatically shuts down to prevent damage in extreme conditions.
• Post-Run Cooling Fan: Keeps the motor cooler for longer run times and improved durability.
• Heavy-Duty Construction: Protected in a high-impact plastic carry case with internal mounts and storage compartments.
• Quick Connect Fittings: Fast setup with ARB-style fittings and included air accessories.

Specifications:

• Voltage: 12 V
• No-Load Airflow: 130 L/min (4.59 CFM)
• Load Airflow: 88 L/min (3.1 CFM) @ 200 kPa
• No-Load Current Draw: 15 A
• Max Load Current Draw: 40 A
• Pressure Cut-Out: 135–150 psi
• Duty Cycle: 100% with active cooling

Kit Includes:

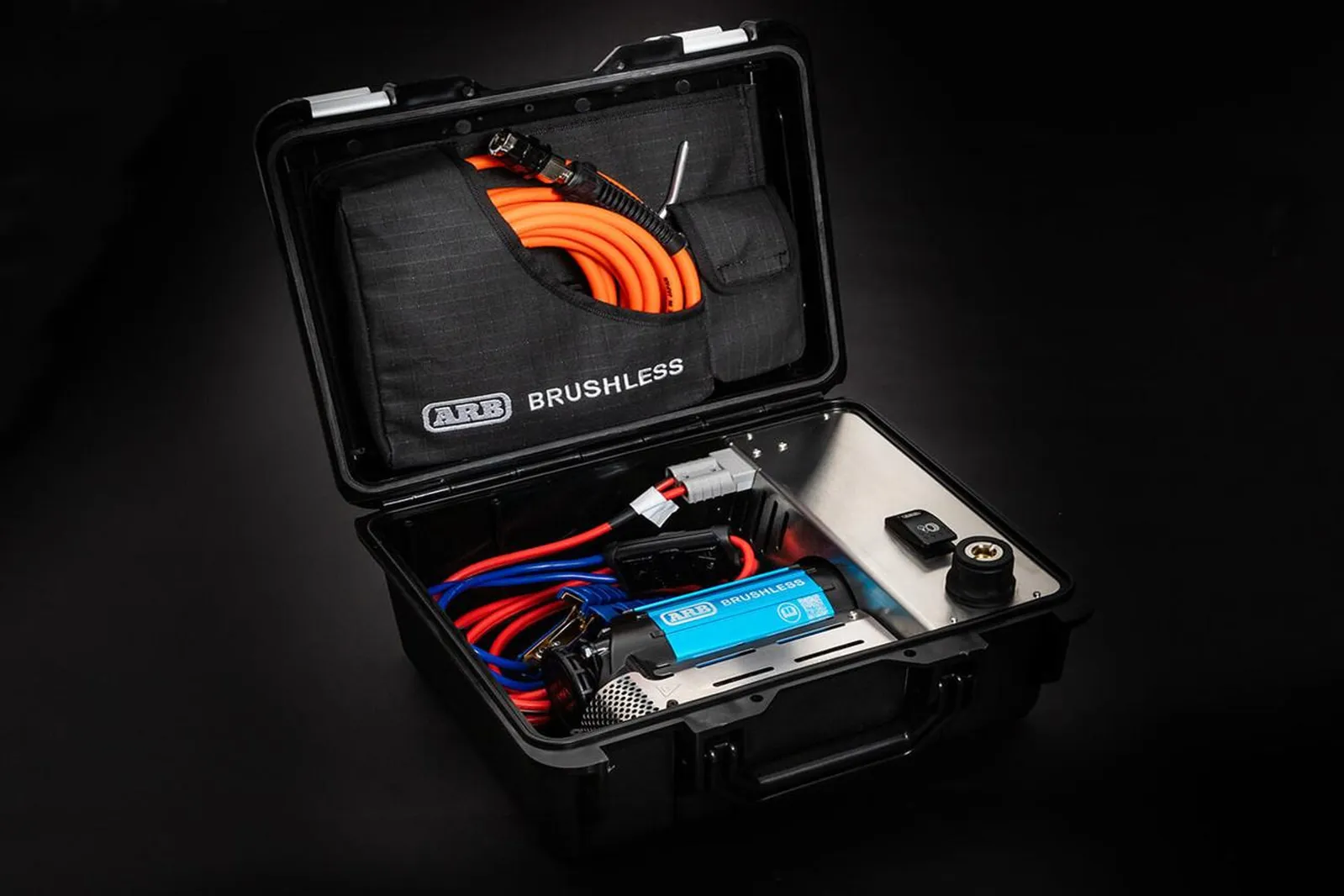

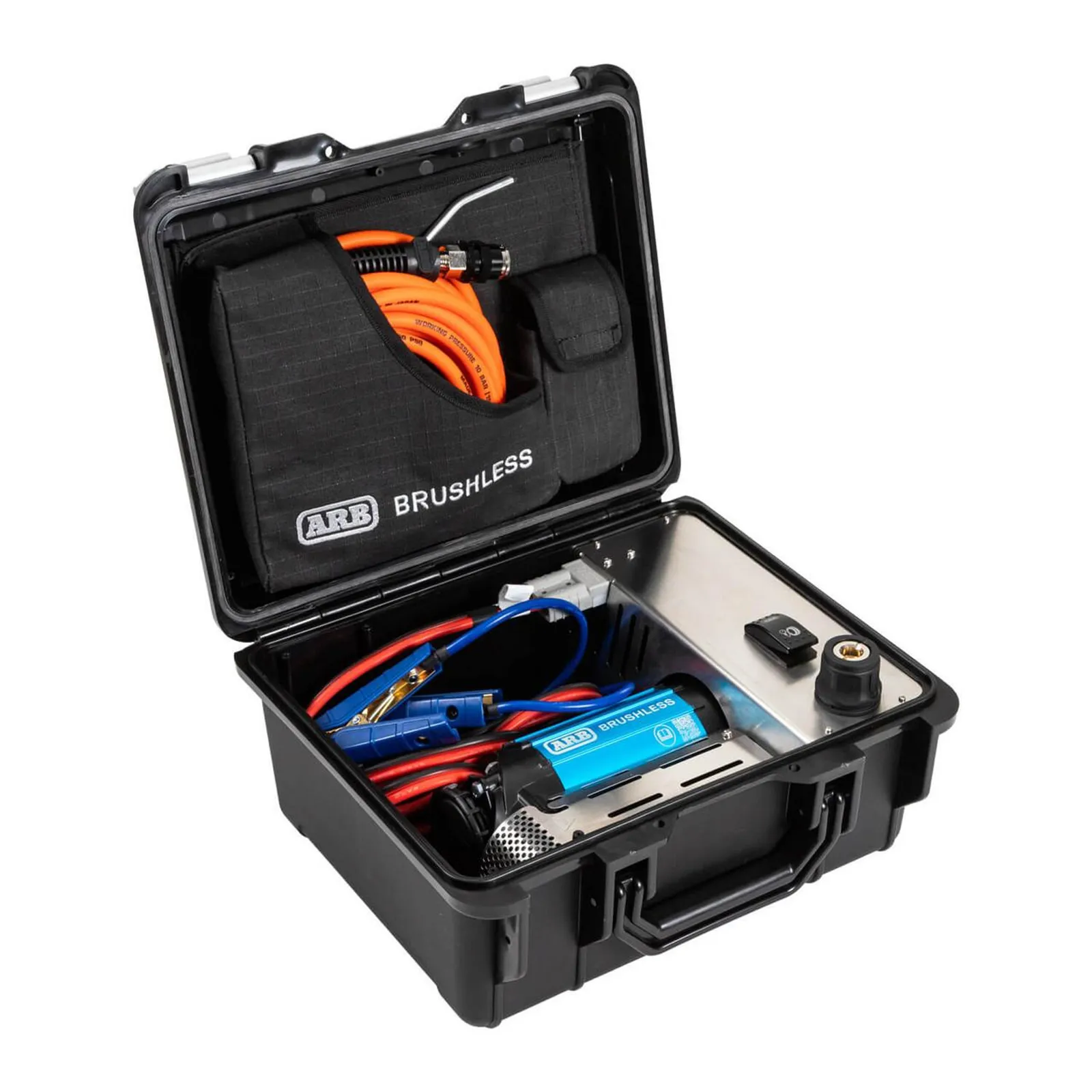

• ARB CKBLP12 Brushless Portable Compressor

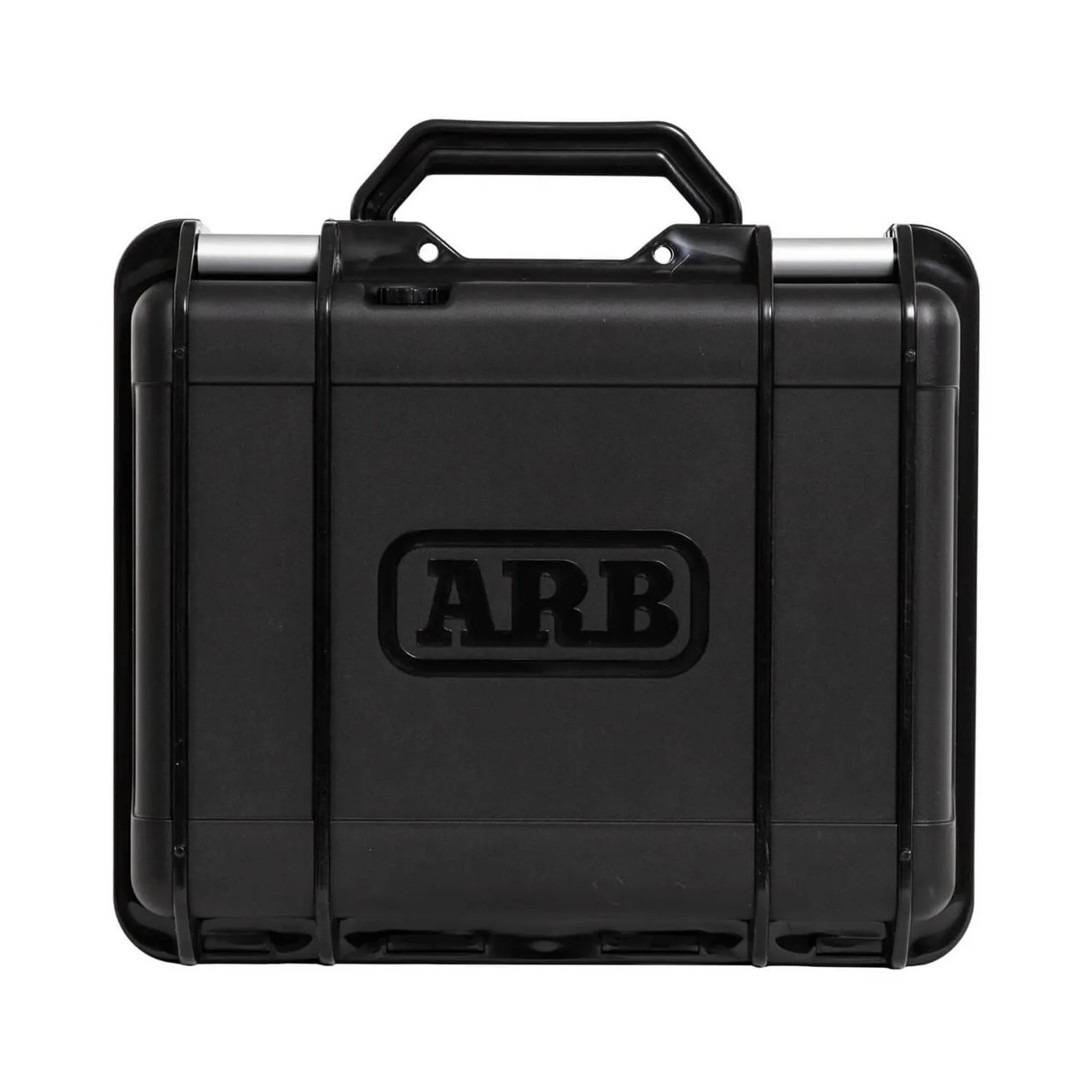

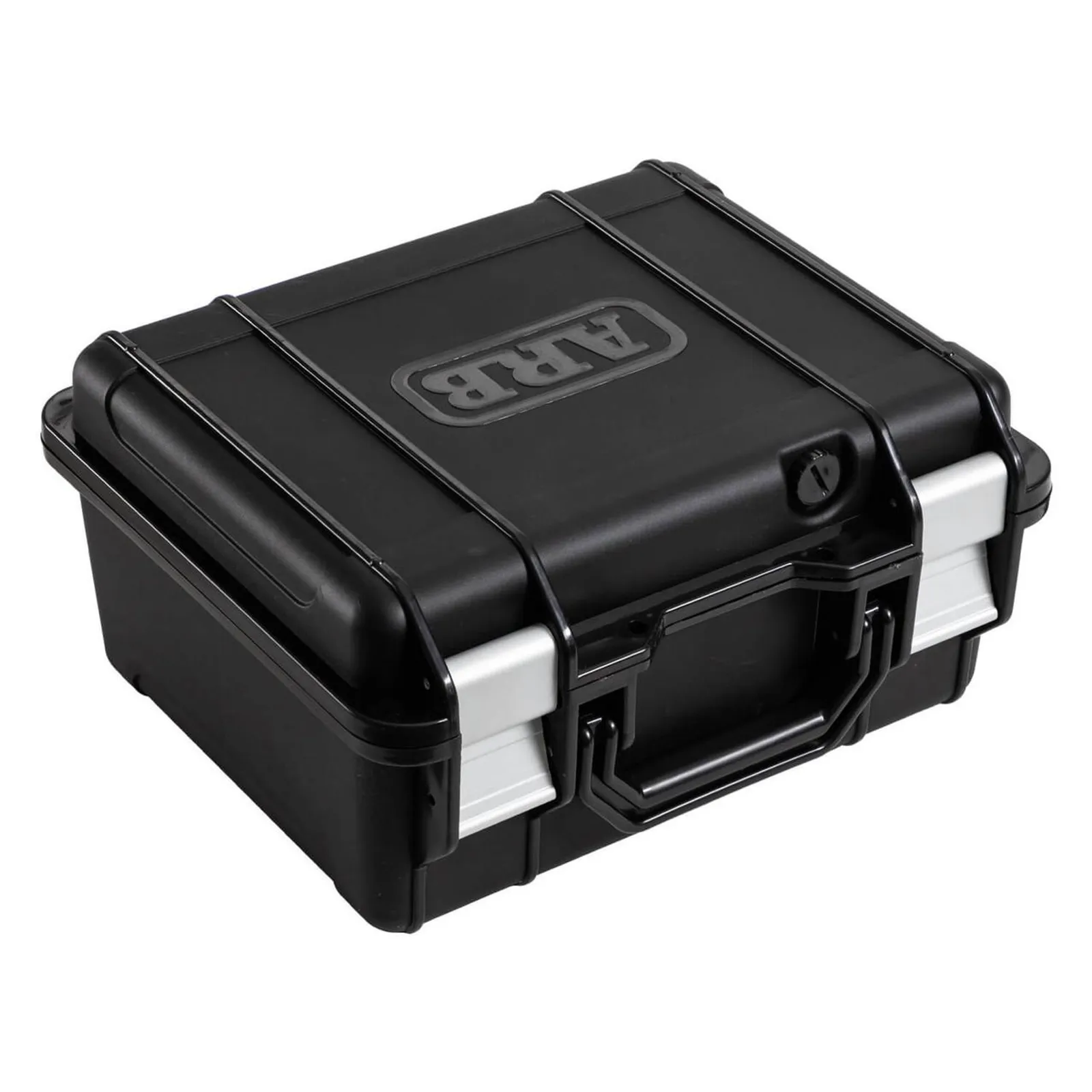

• Durable carry case with internal mounts

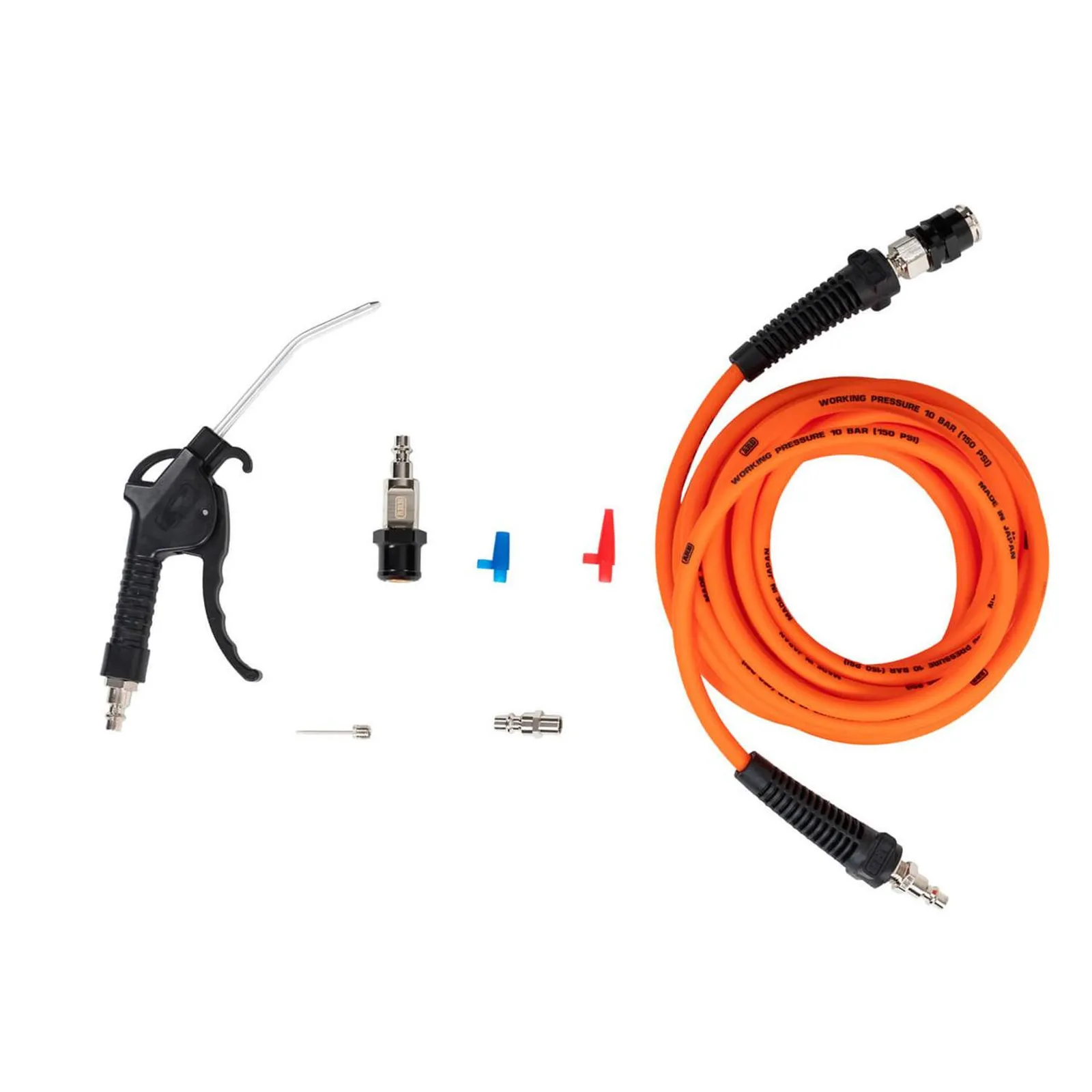

• Inflation hose with ARB-style fittings

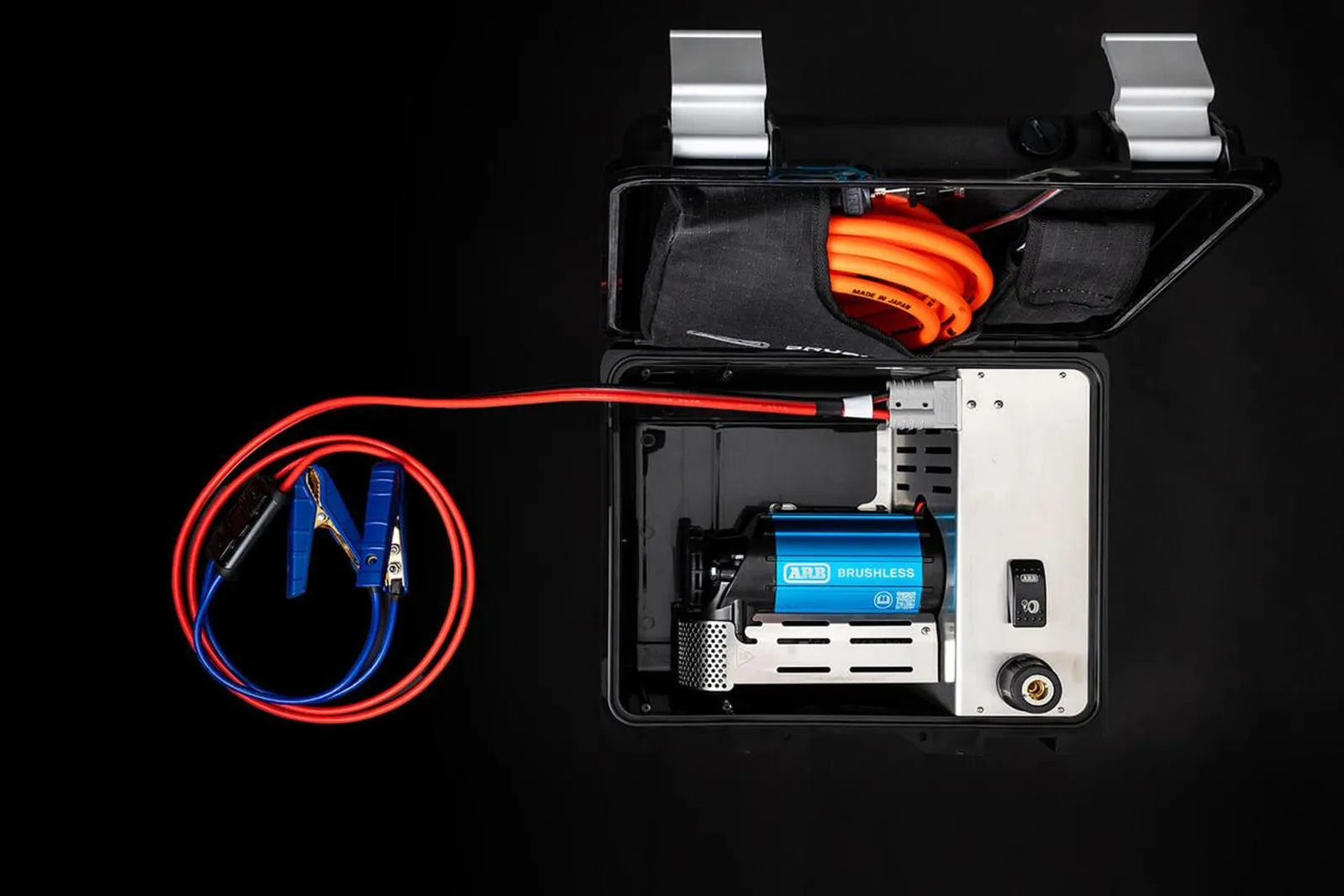

• Battery clamps with fused lead
• Tyre inflation accessories and fittings
