ARB Brushless Twin Portable Air Compressor Kit

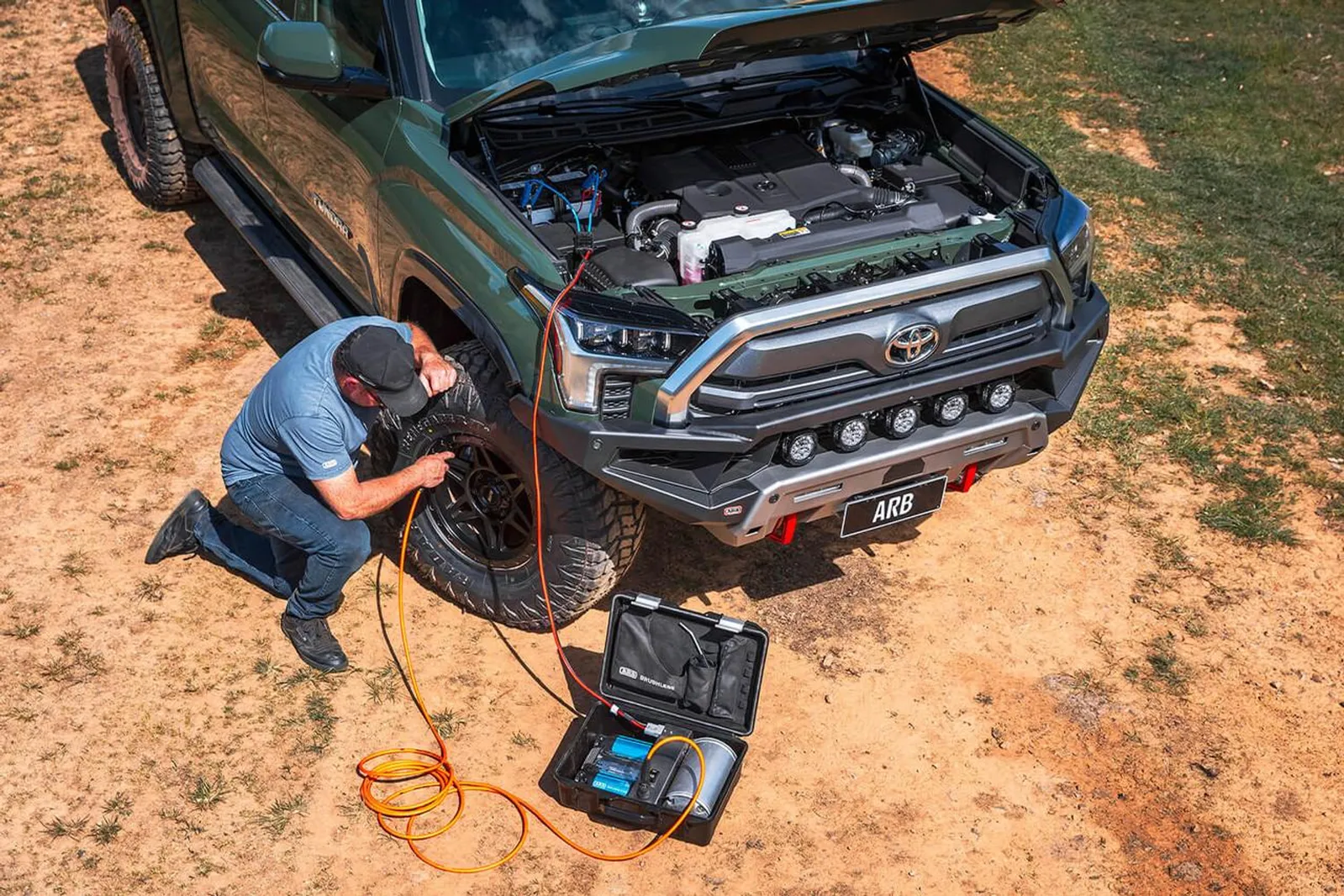

The ARB CKBLTP12 is the ultimate 12 V twin motor portable brushless compressor for those who demand maximum airflow in a rugged, go-anywhere package. Built to handle high-demand air tasks fast, it's perfect for inflating larger tyres, operating air tools, or supporting multiple vehicles on the track.

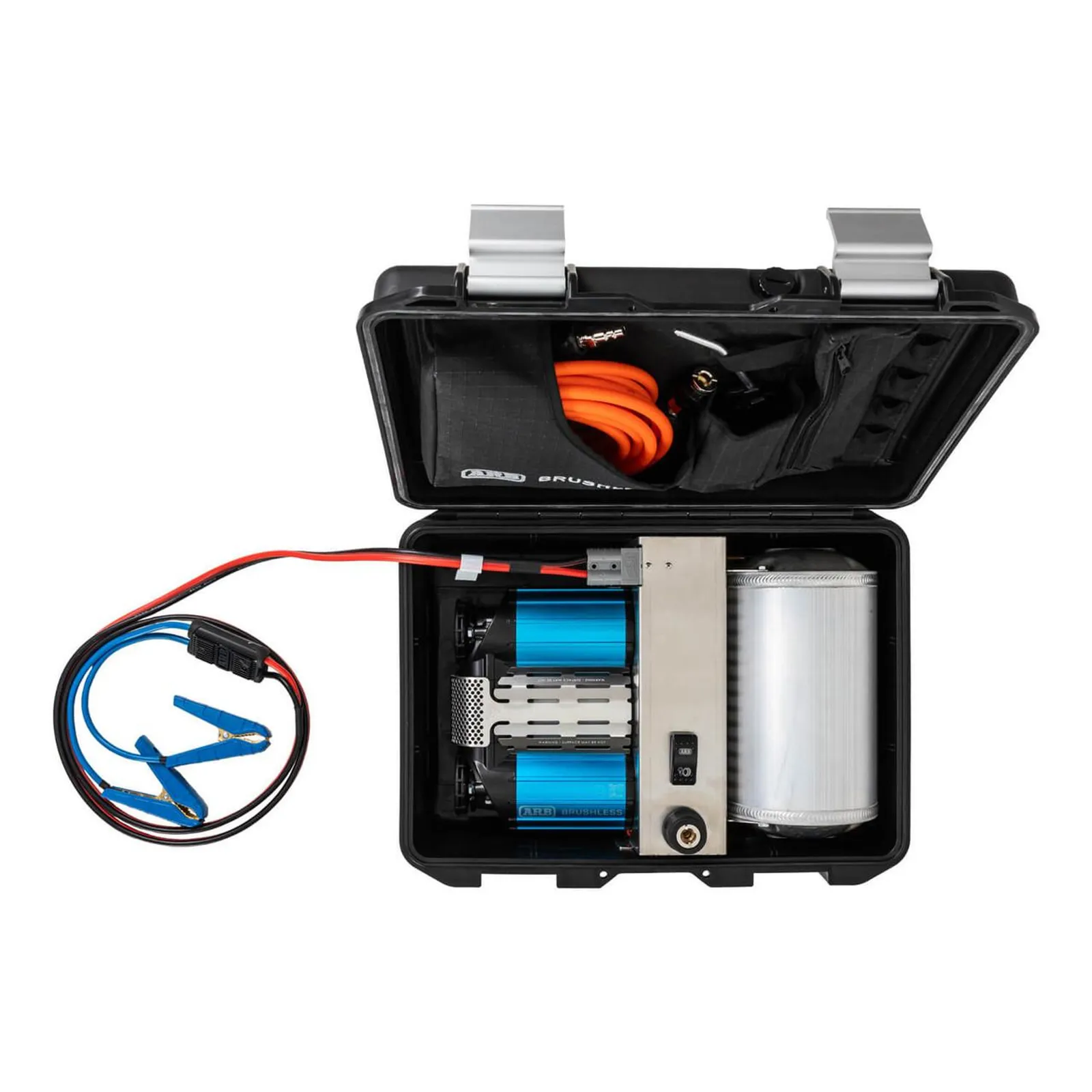

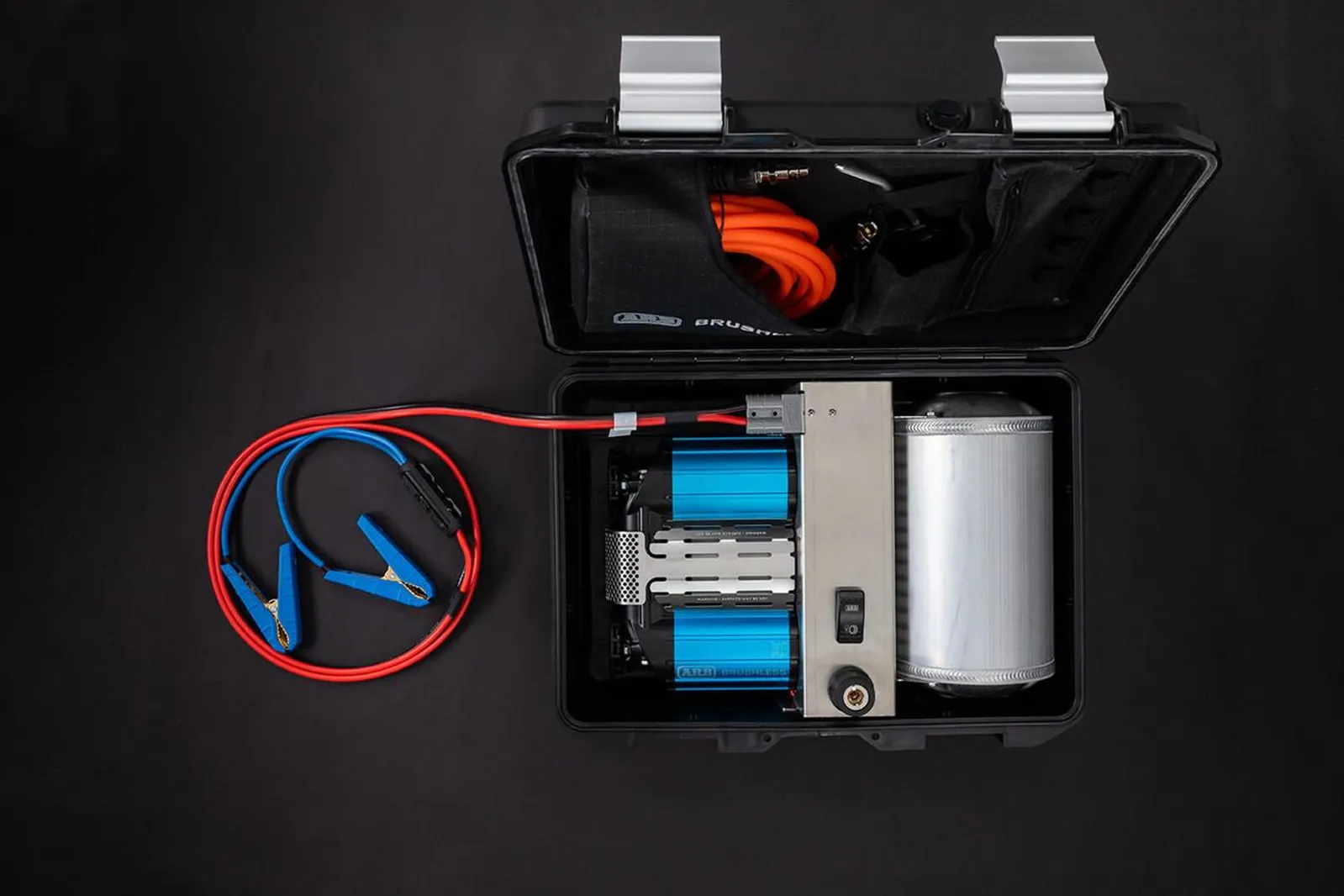

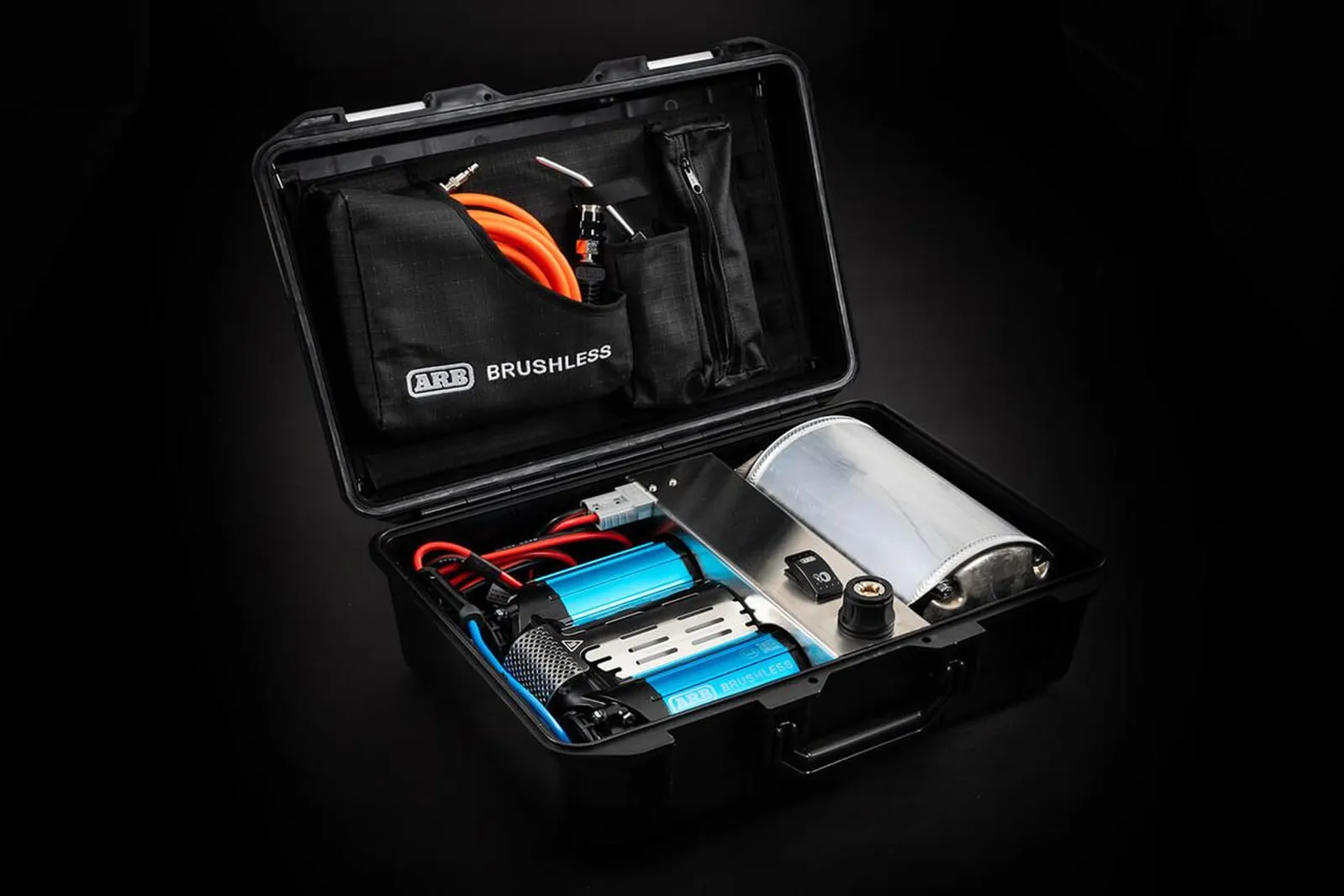

Housed in a heavy-duty carry case, the CKBLTP12 combines twin high-output brushless motors with smart electronics and integrated thermal protection. Whether you're tackling the High Country or running convoy support, this portable powerhouse is ready to perform.

Features:

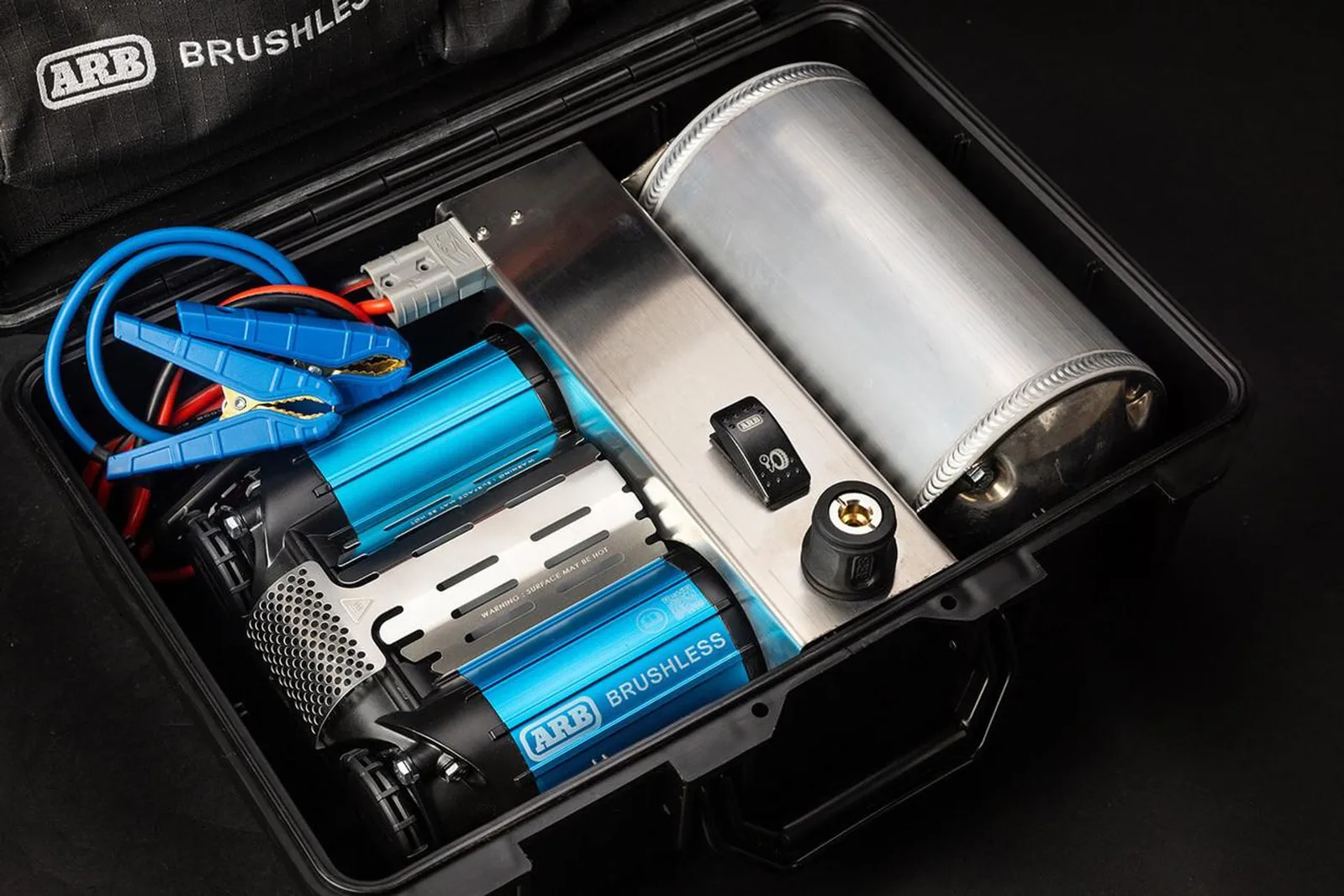

• Twin Brushless Motors: Delivers up to 260 L/min (no load) for the fastest inflation times in the ARB range.
• Smart Control Module: Automatically regulates compressor output based on temperature, voltage, and current for optimal performance.
• Staggered Motor Start: Reduces current spikes on start-up, ideal for use with smaller or shared power systems.
• Post-Run Cooling: Internal fans cool the unit after use, extending run time and compressor life.
• Full Electrical Protection: Built-in safeguards for over-voltage, over-current, and thermal overload.
• Portable & Ready to Go: Supplied in a protective carry case with hose, fittings, and heavy-duty battery clamps.

Specifications:

• Voltage: 12 V
• No-Load Airflow: 260 L/min (9.18 CFM)
• Load Airflow: 176 L/min (6.2 CFM) @ 200 kPa
• No-Load Current Draw: 28 A
• Max Load Current Draw: 80 A
• Pressure Cut-Out: 135–150 psi
• Duty Cycle: 100% with active cooling

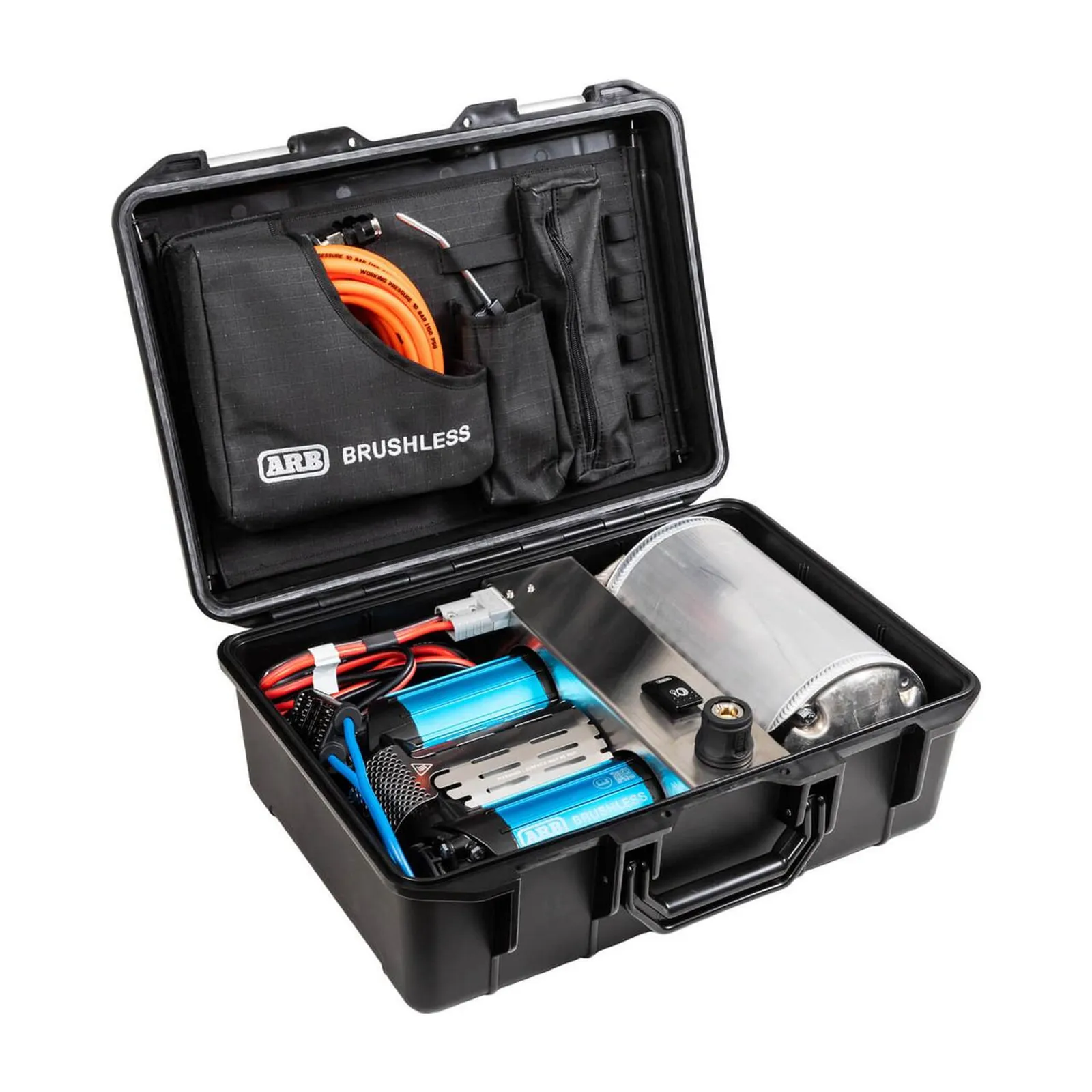

Kit Includes:

• ARB CKBLTP12 Twin Brushless Portable Compressor

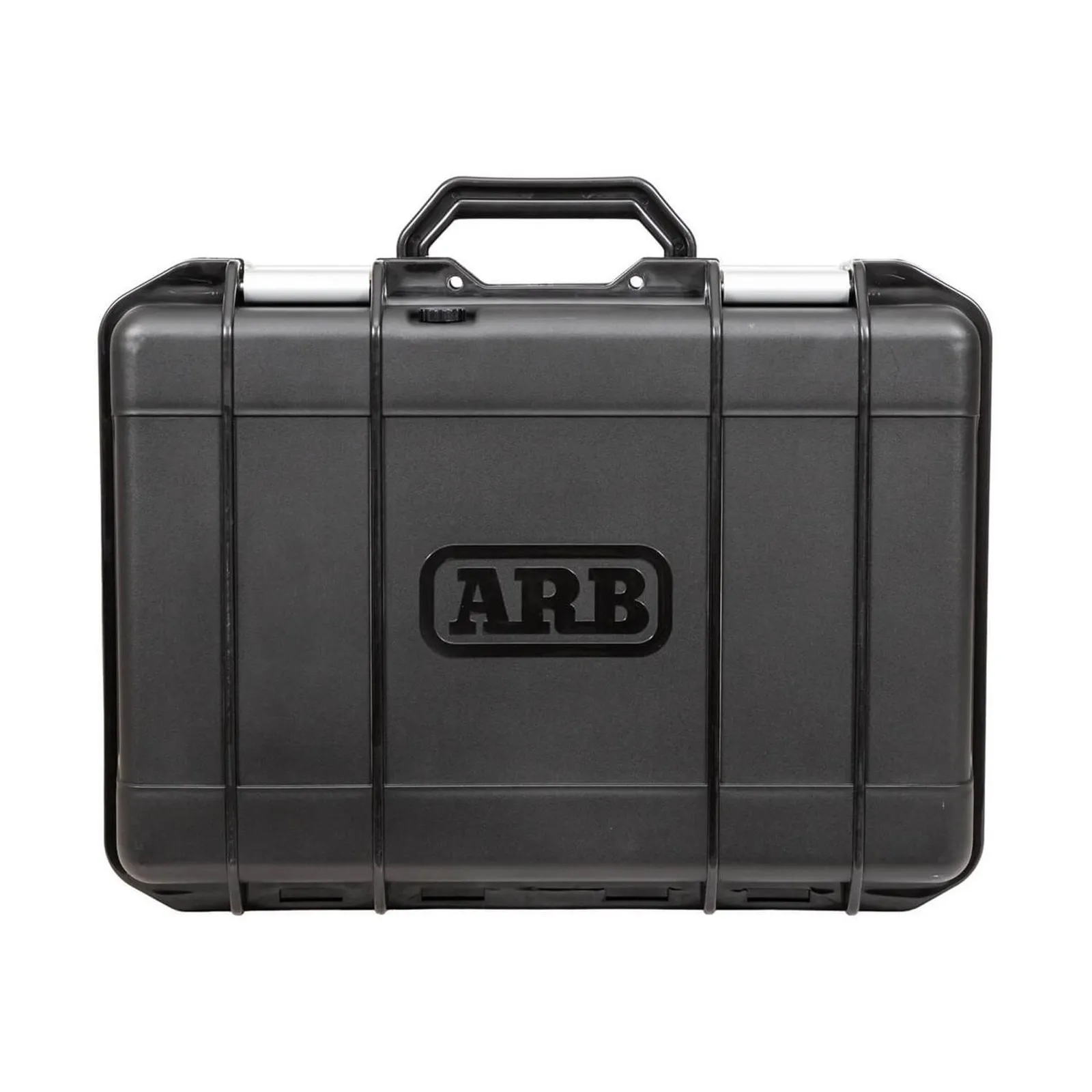

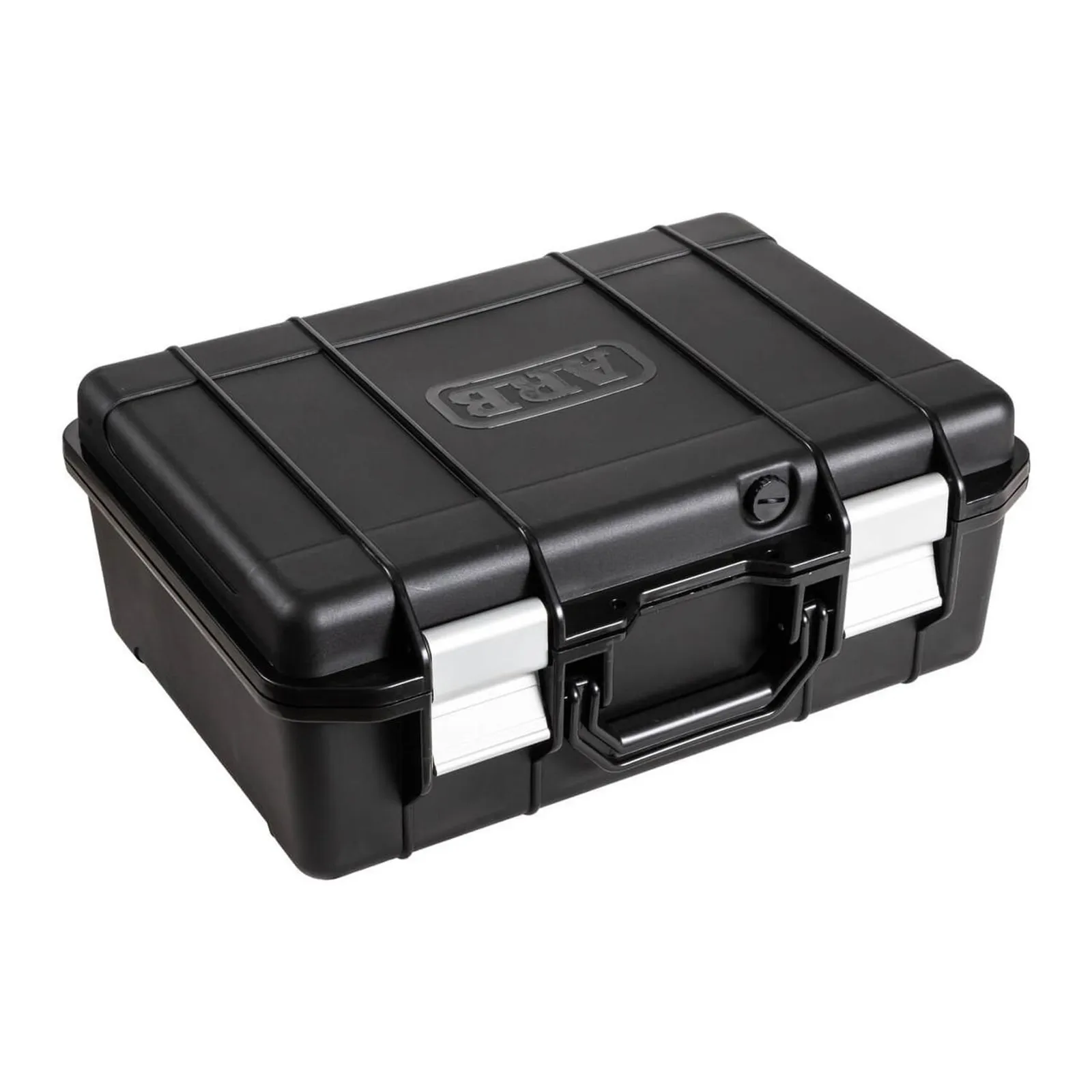

• Durable carry case with internal compressor mounts

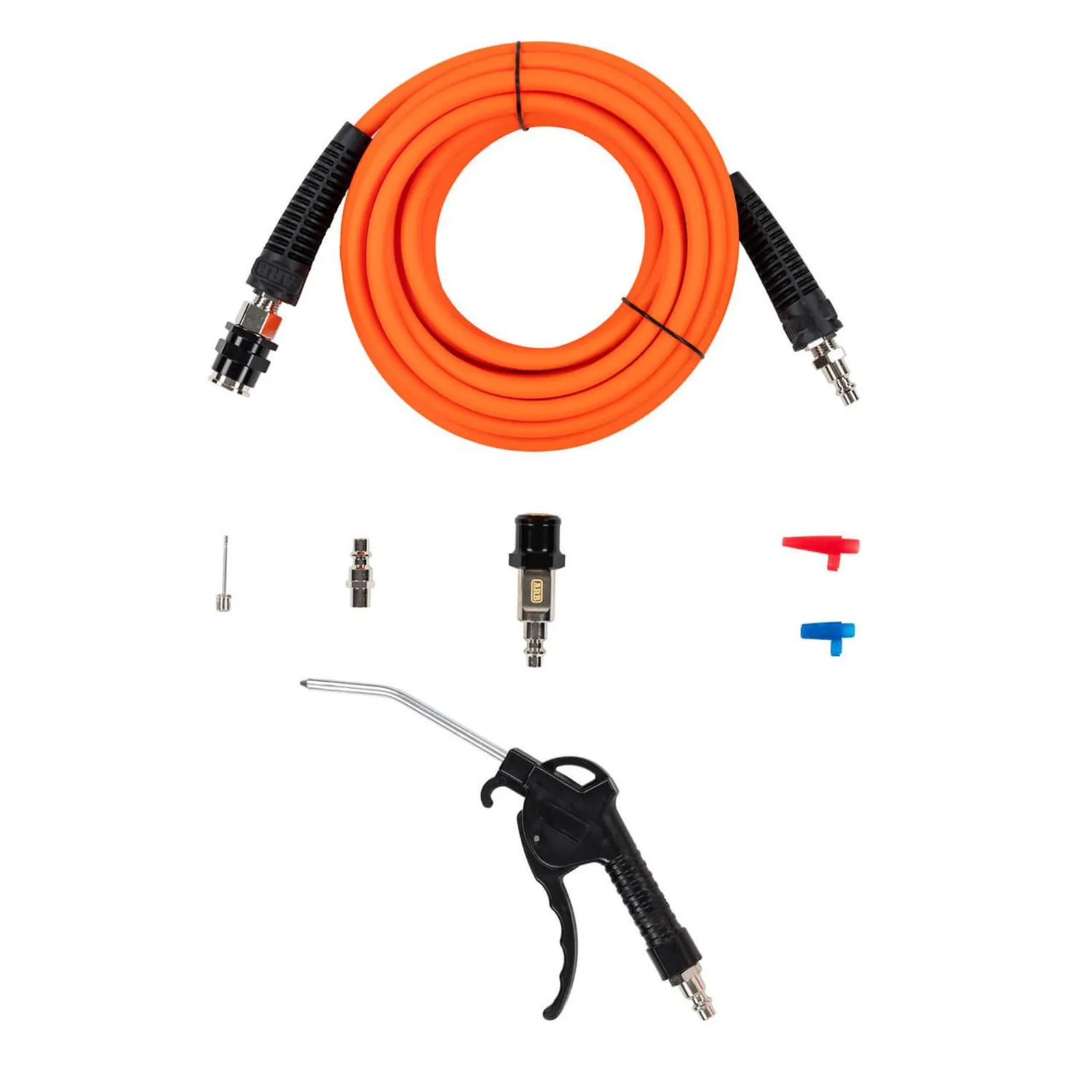

• Heavy-duty inflation hose with ARB-style fittings
• Battery clamps with fused power lead
• Tyre inflation accessories and fittings
