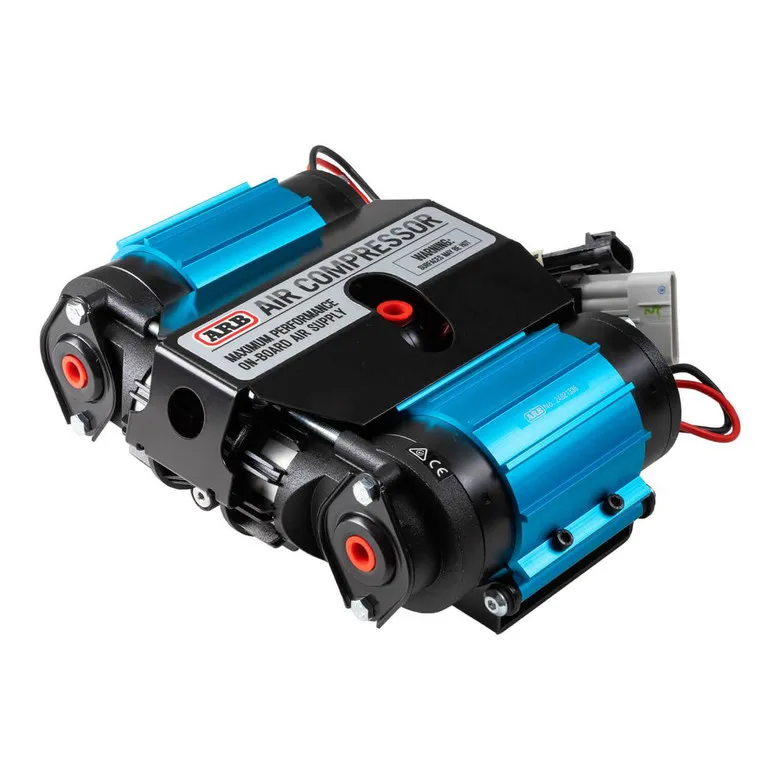

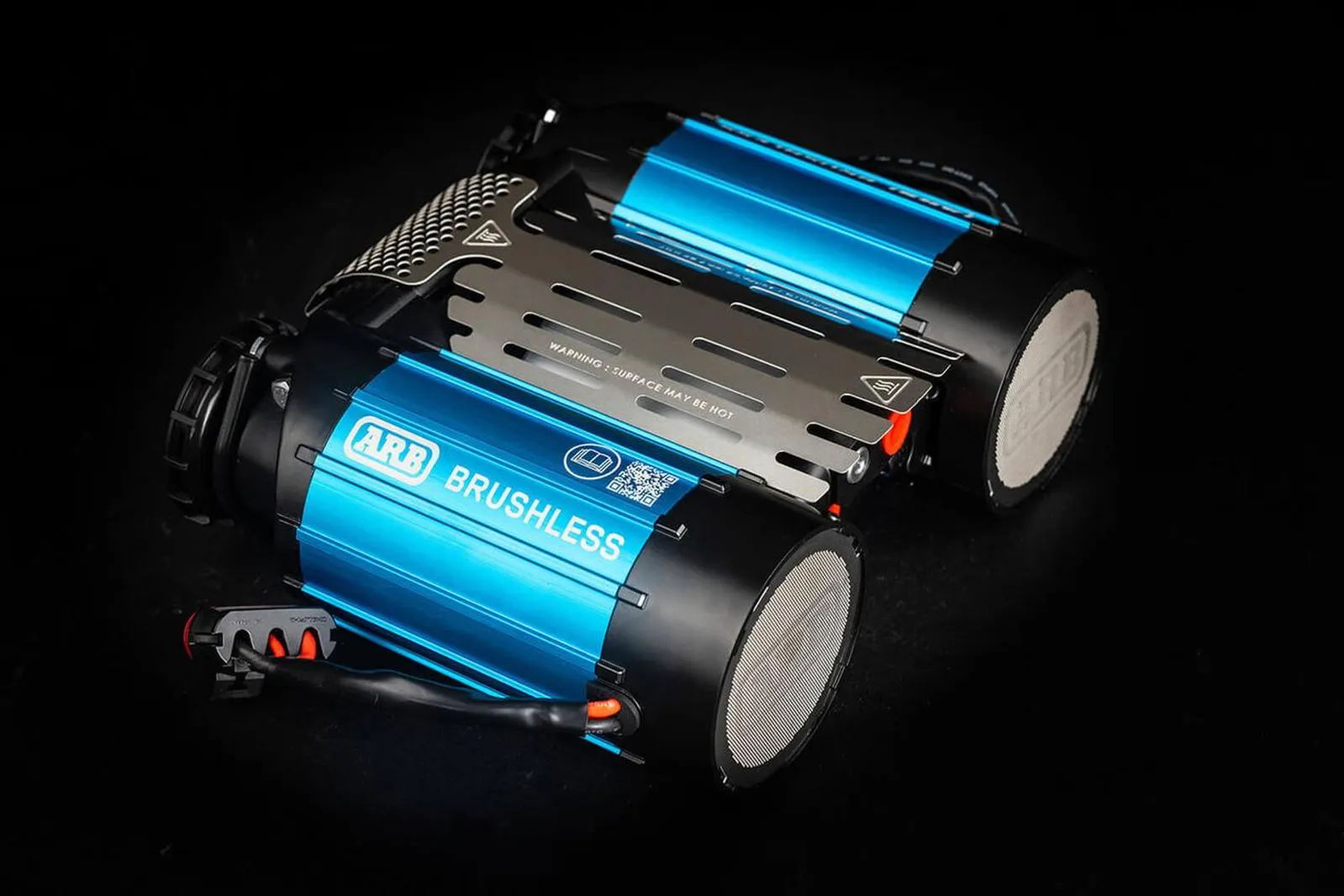

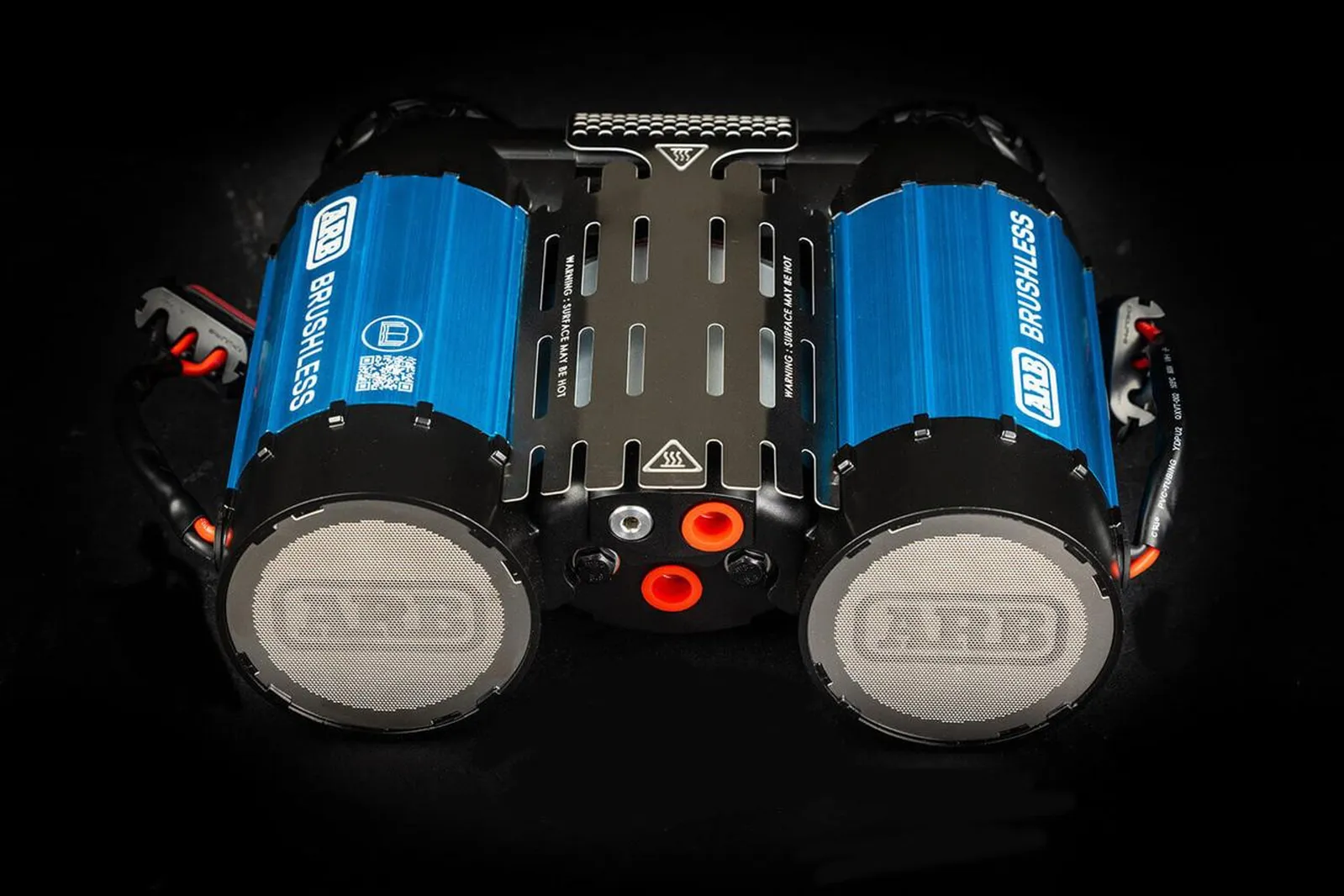

ARB Brushless Twin Onboard Compressor

The ARB Brushless Twin Onboard Compressor (CKBLTA12) is the ultimate high-output air solution for serious off-roaders and touring setups.

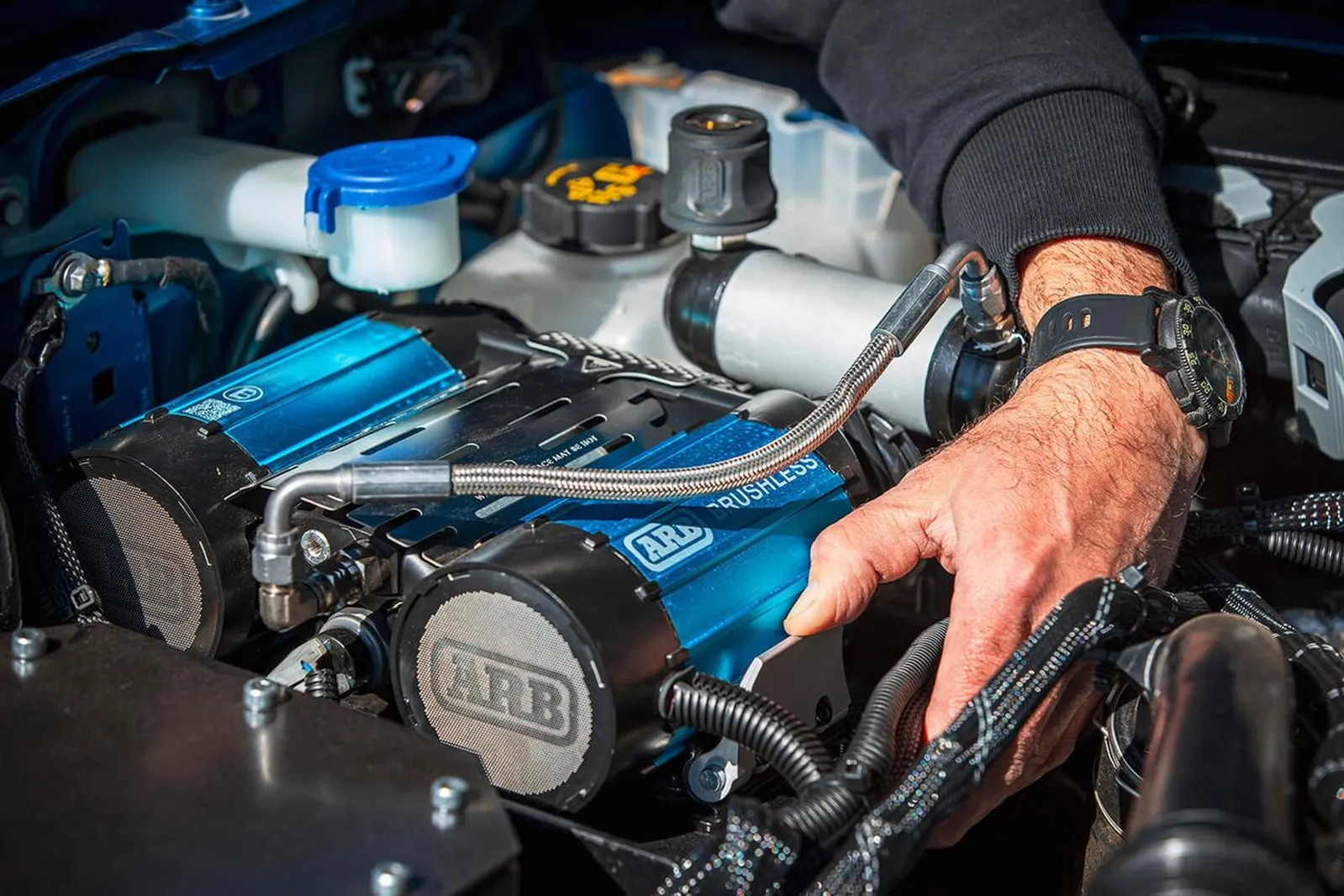

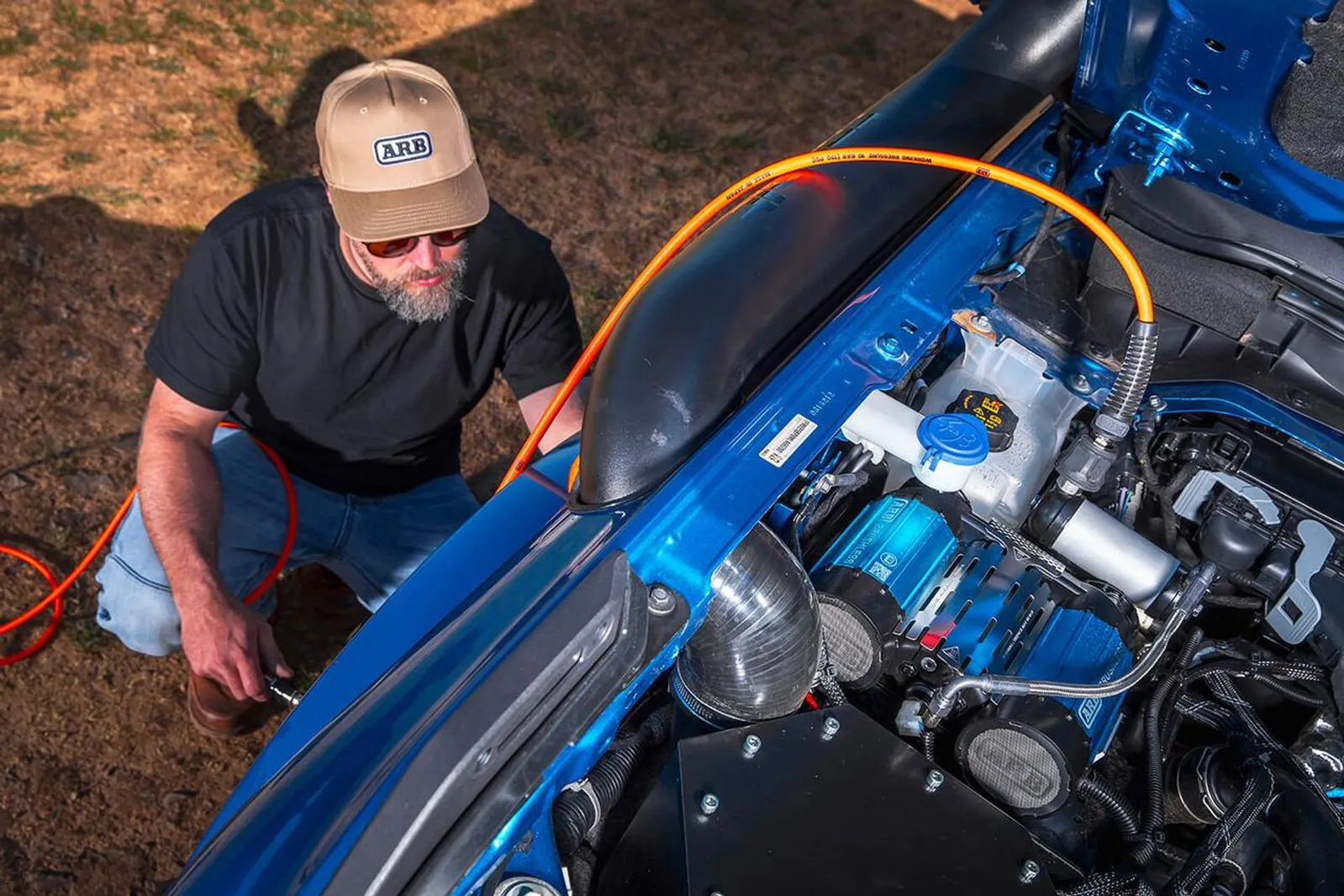

Designed for permanent installation, this dual-motor brushless compressor delivers lightning-fast tyre inflation and the ability to run air tools or activate ARB Air Lockers with ease. Built for Australian conditions, it features an integrated electronic control system, active cooling, and superior airflow in a compact, maintenance-free package.

Features:

• Massive Airflow: Twin brushless motors deliver up to 260 L/min (no load), making it one of the fastest 12 V onboard compressors available.
• Smart Control Module: Electronic system actively manages speed, temperature, and current draw to optimise performance and reliability.
• Overload Protection: Built-in safeguards against over-voltage, under-voltage, over-current, and thermal overload.
• Post-Run Cooling: Internal fan cools the system after use to extend duty cycle and compressor life.
• Brushless Design: No brushes means fewer moving parts, less wear, and reduced maintenance.
• Staggered Motor Start: Reduces current spikes and load on smaller vehicle charging systems.
• Quick-Release Cam-Lock Mounting: Fast, tool-free removal and refit when needed.

Specifications:

• Voltage: 12 V
• No-Load Airflow: 260 L/min (9.18 CFM)
• Load Airflow: 176 L/min (6.2 CFM) @ 200 kPa
• No-Load Current Draw: 28 A
• Max Load Current Draw: 80 A
• Pressure Cut-Out: 135–150 psi
• Duty Cycle: 100% with active cooling

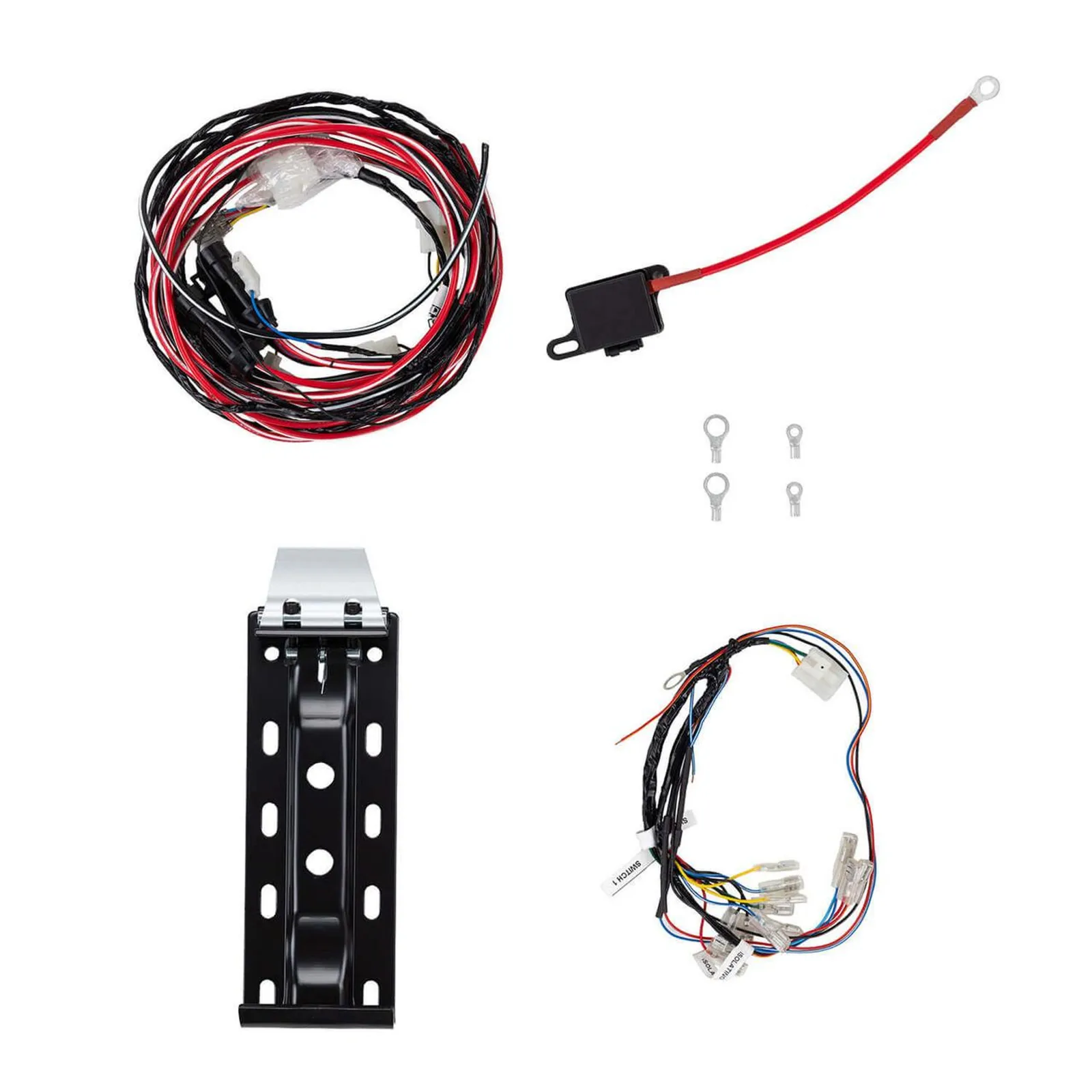

Kit Includes:

• ARB CKBLTA12 Brushless Twin Onboard Compressor
• Quick-release cam-lock mounting bracket
• Wiring harness and relay loom with sealed connectors
• Air Locker solenoid mounting provisions
• Comprehensive hardware and fitting instructions
