EFS MXP 2.5 50mm Lift Kit - Ford Ranger PX3 06/2018-04/2022

4WDING  •  ROAD  •  TOWING CARAVANS & CAMPERS

At EFS our vision has always been to create a product that offers the best performance while delivering the smoothest ride possible

EFS MXP The Next Evolution in Suspension Performance. Premium shocks engineered for control, comfort & durability on and offroad.

Features:

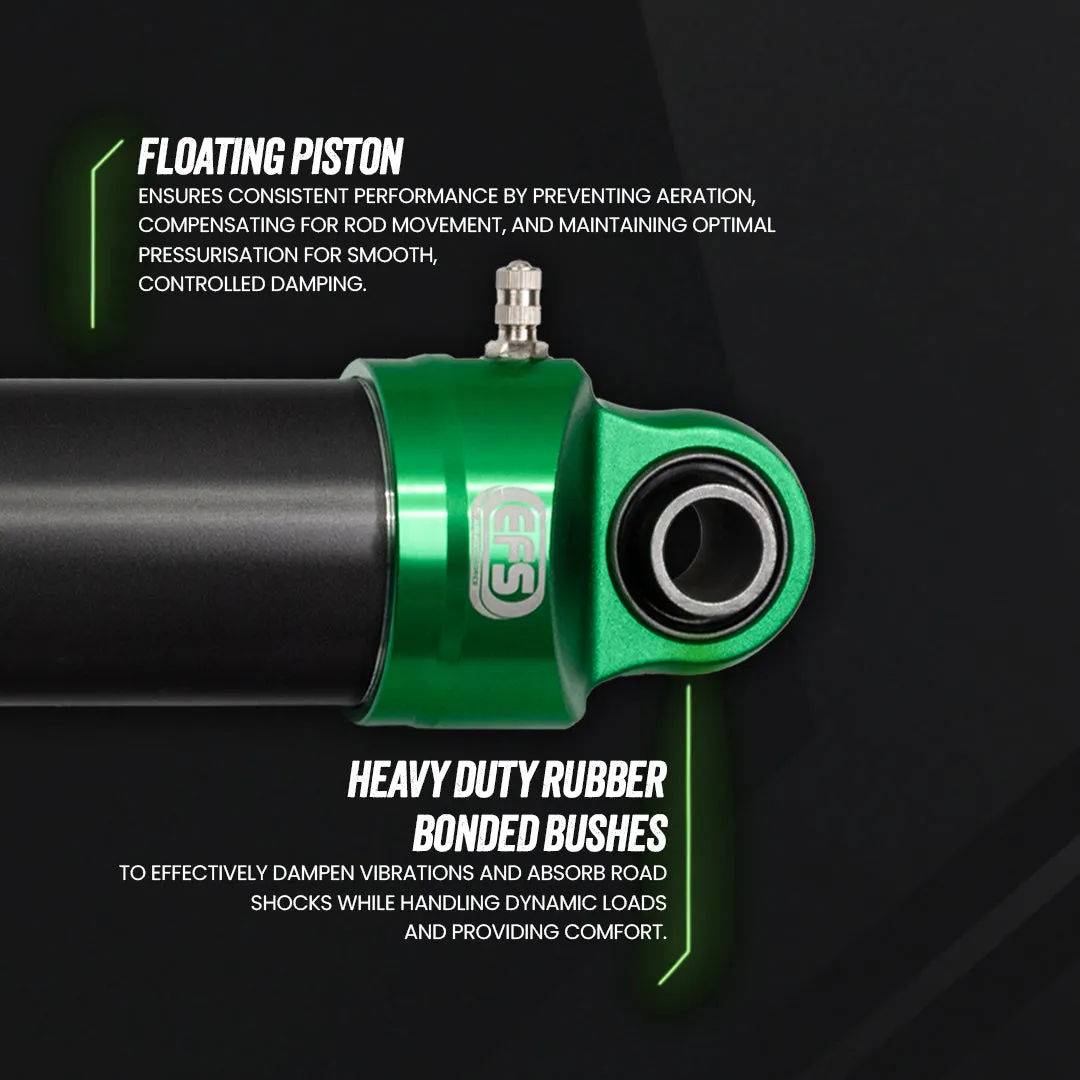

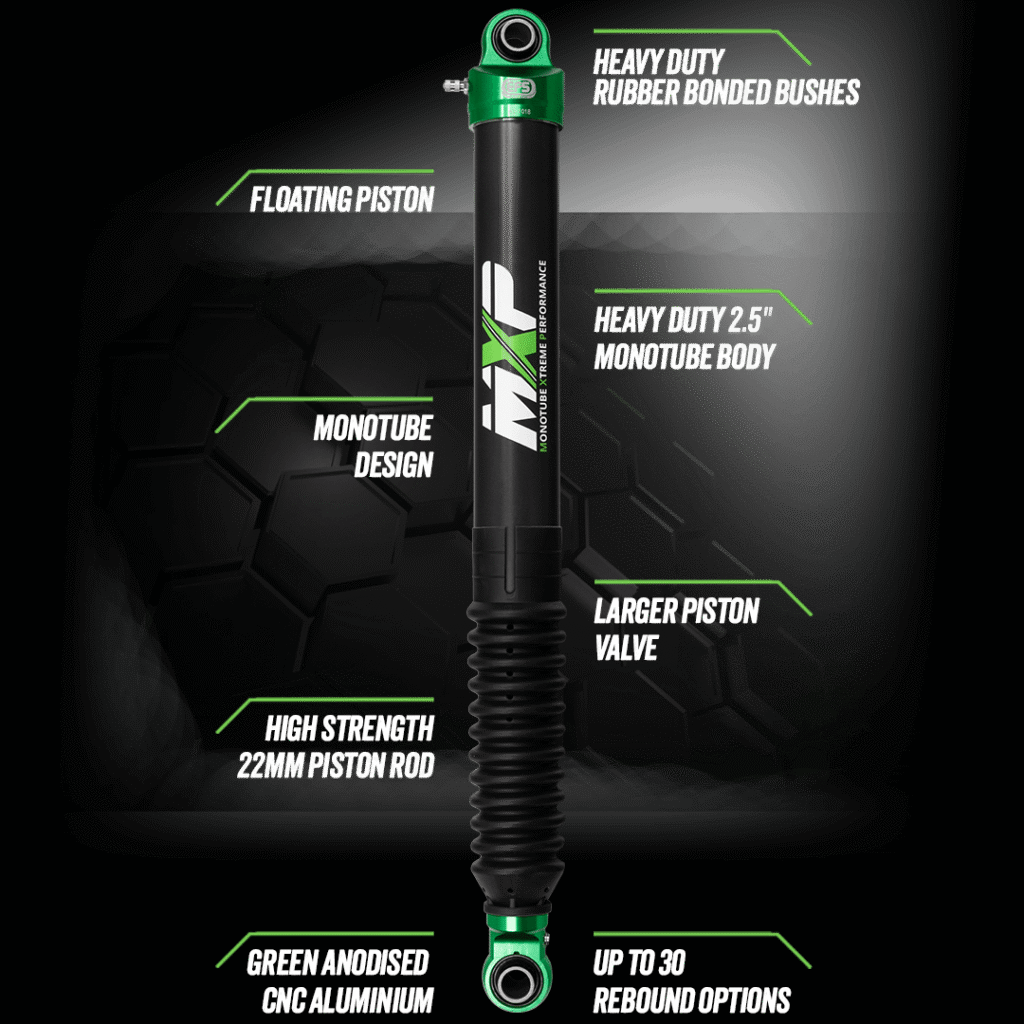

• Monotube design & floating piston.

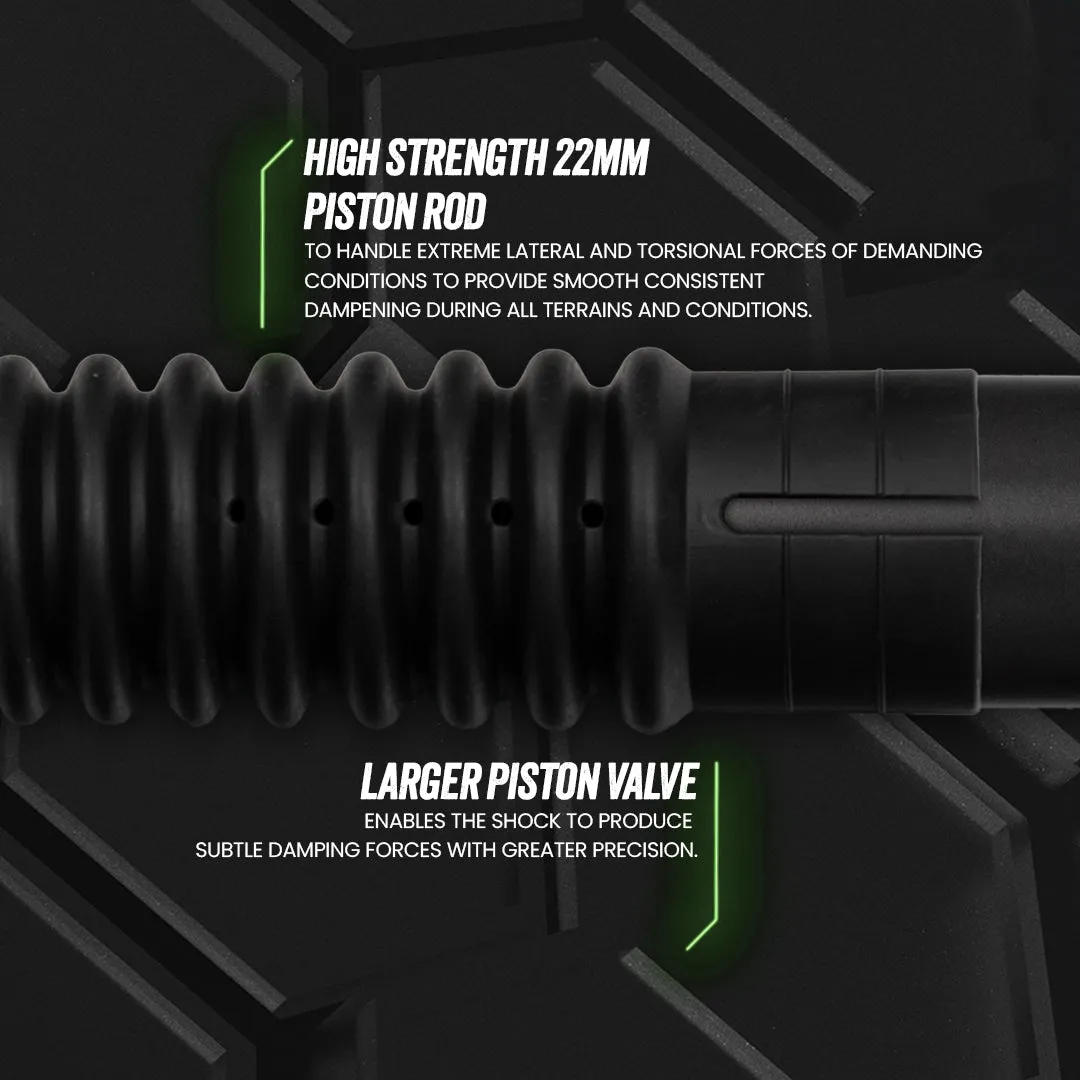

• Built around a rugged 2.5" monotube body and a high strength 22mm piston rod, the MXP delivers reliable damping in any condition.

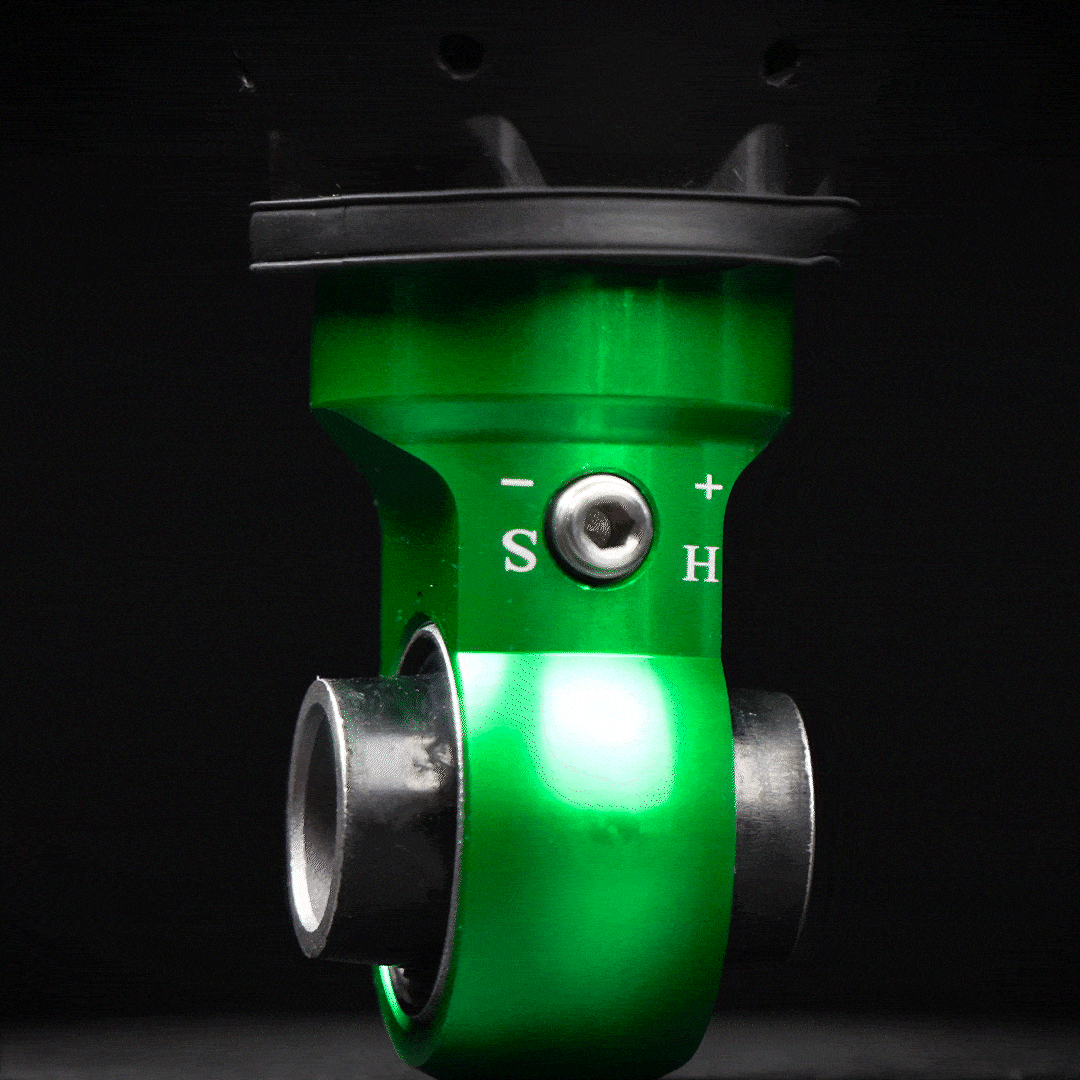

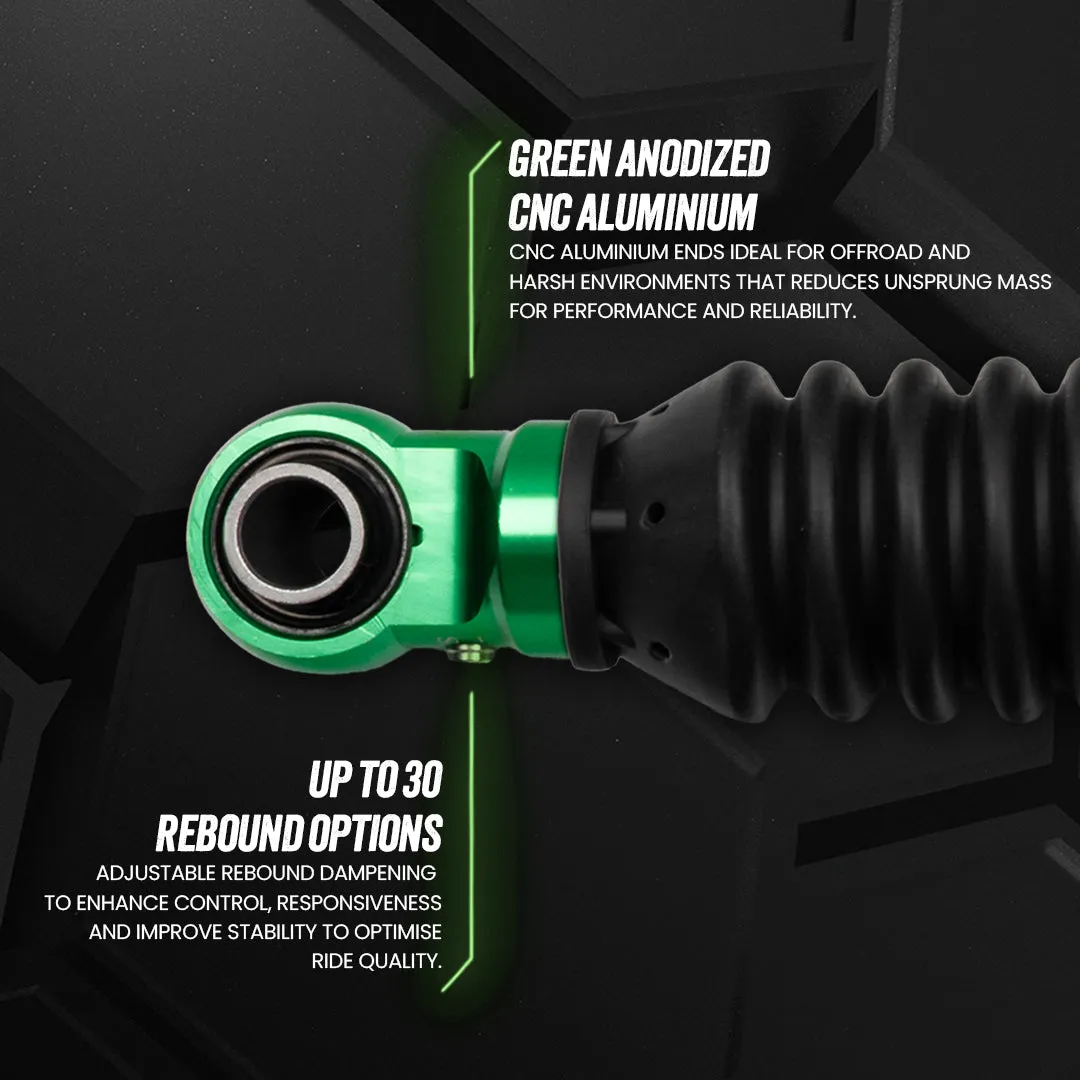

• Adjustable rebound damping gives you the flexibility to fine tune your suspension, enhancing control, sharpening responsiveness, and improving stability to optimise overall ride quality.
• MXP combines advanced performance with a straightforward, no reservoir fit.
• Designed as a direct bolt in replacement for OE suspension, it installs hassle free with precision fit hardware and high quality mountings - no modifications required.

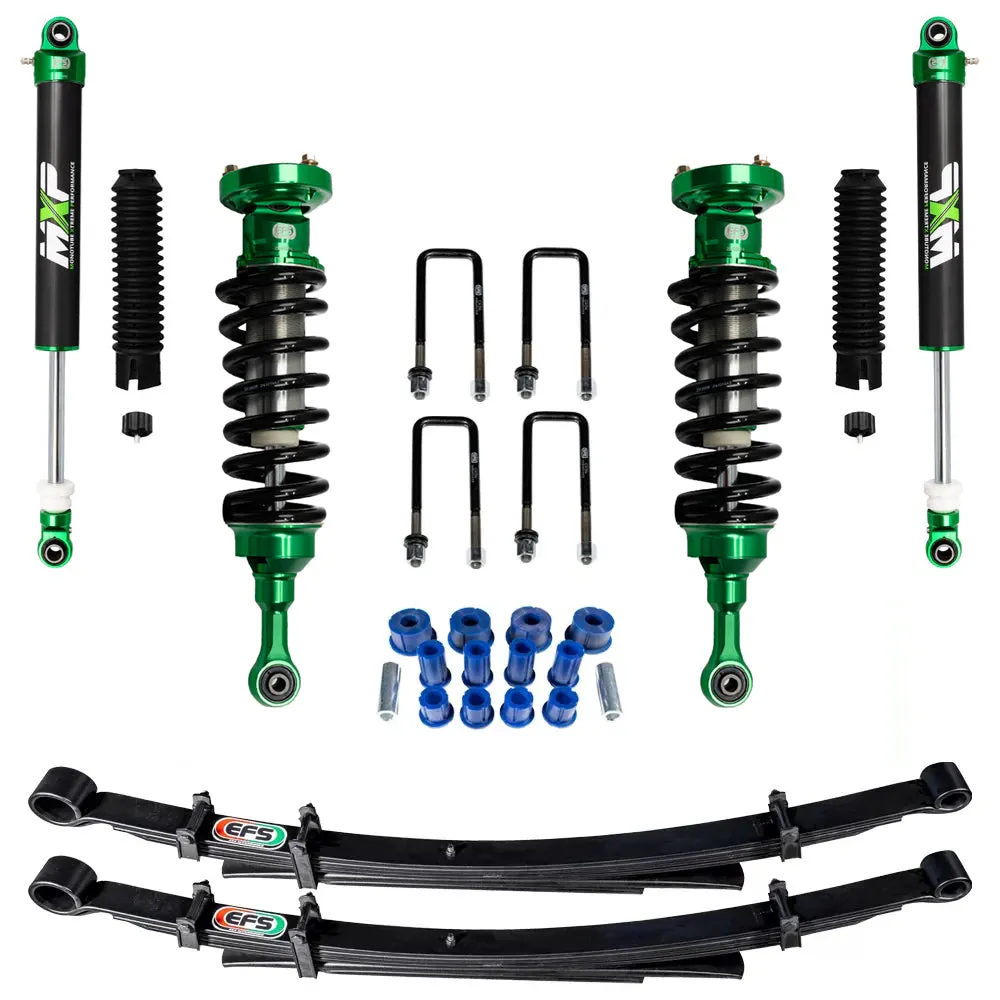

The kit Includes:

• 2x EFS MXP Monotube Assembled Front Struts with Coils
• 2x Adjusting C Spanners for fine tuning ride height
• 2x EFS MXP Monotube Rear Shocks
• 2x EFS Raised Leaf Springs Rear
• 4x HD U-Bolts
• 1x Leaf Spring Bush Kit
• 1x Tailshaft Spacer Kit

Important Notes for setting up your Vehicle Correctly:

• When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
• Do Not include “Future Planned Mods” into your weight calculations if they are not fitted to the vehicle.
• Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
• Do not put “Occasional” Loads into your "Constant" Load determinations.
• Selecting a load rating that is too heavy for your setup will result in Poor Flex Offroad, Very Rough Ride, Compromised suspension Travel, and will cause damage to your new Shock Absorbers and other components by pushing them outside of their intended range & Void the Warranty on them.
• If you are in any Doubt, Please click on the link below on how to setup your suspension correctly

            https://www.autopartsco.com.au/blog/blog/how-to-set-up-your-suspension-correctly/

Please Note:

• All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicle’s setup and accessories.
• Estimated Lift Height 50mm
