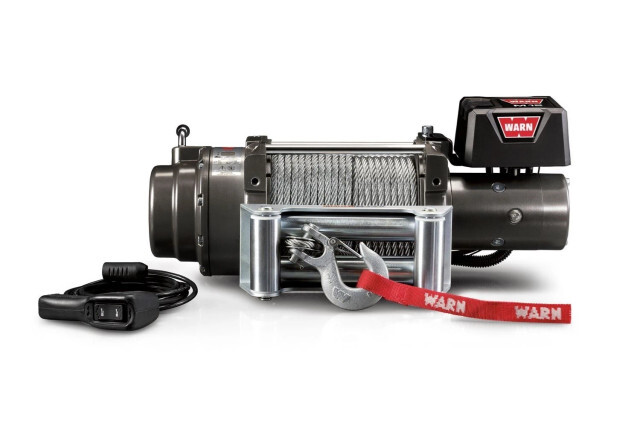

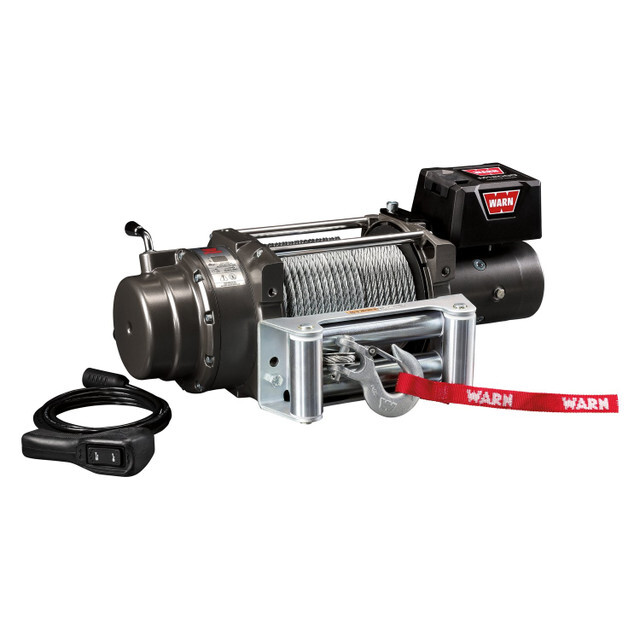

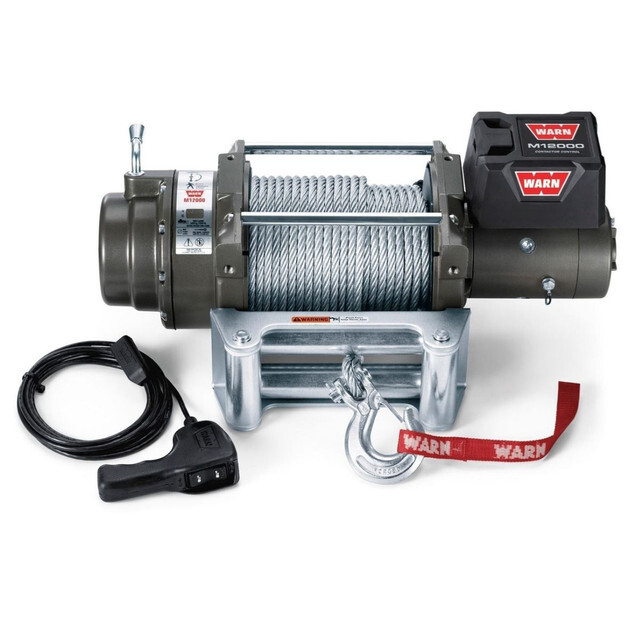

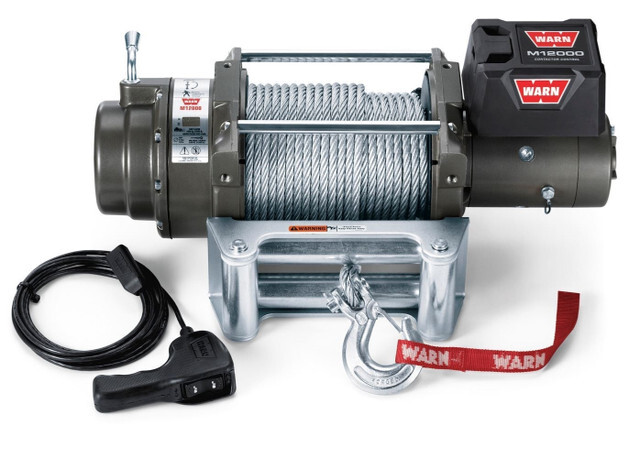

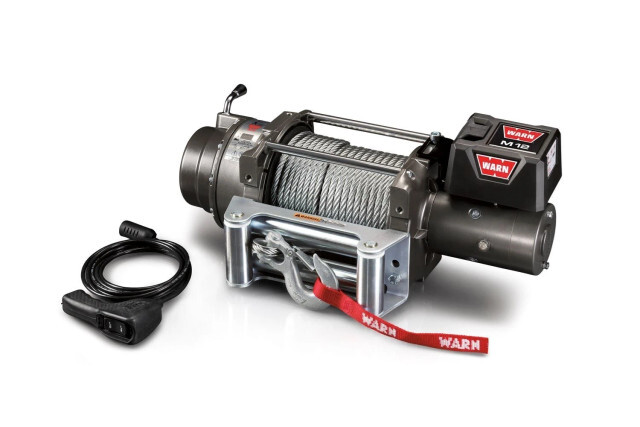

Warn M12 Heavy Duty 12000lb Recovery Electric Winch 12V Wire Rope & Roller Fairlead

WAS $4,199.95
RRP $4,199.95
NOW $3,989.95
SAVE 5%!
Sale Ends in
23:59 pm, 4 December 2024
In Stock



Calculate Shipping

This Warn Industries M12000 Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pound. It has a 125 feet wire rope.

Please note: This Winch will require winch mount for proper installation.

Features:

Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.

  • 12,000 lb. (5,440 kg) pulling capacity (single line)
  • Large frame winch design is designed to handle heavier winch loads
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Brake provides superior control while winching
  • Remote-mount control box allows for various mounting options
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead
  • Chip-resistant powder-coated finish
  • 125' of 3/8" (38m of 9.5mm) diameter wire rope
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications:

TYPE: Electric
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Vehicle Recovery
VOLTAGE: 12 Volt
MOTOR HORSEPOWER: 4.6 Horsepower
ELECTRICAL CONTROL TYPE: Contactors
MOTOR TYPE: Series Wound
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 261:1
FREE SPOOLING: Yes
BRAKE TYPE: Mechanical Cone
LINE DIAMETER (IN): 3/8 Inch
LINE LENGTH (FT): 125 Feet
LINE MATERIAL: Steel
FAIRLEAD TYPE: Roller
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: Handheld Remote Switch
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 10 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Gray
MAX LINE PULL/ LINE SPEED: 12000 Pound/ 3.86 Feet Per Minute
MAX AMP DRAW/ LINE PULL: 440 Amp Draw/ 12000 Pound

(UF-WAR-00049)

SKU UF-WAR-00049
Model # 17801
Brand Warn
