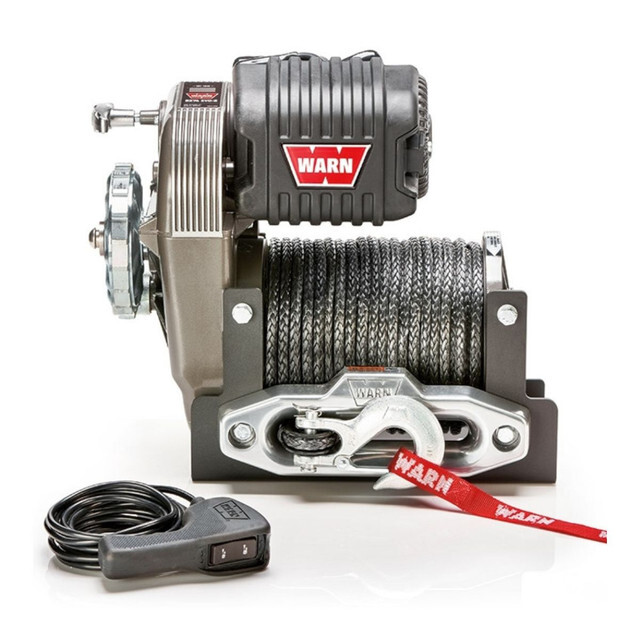

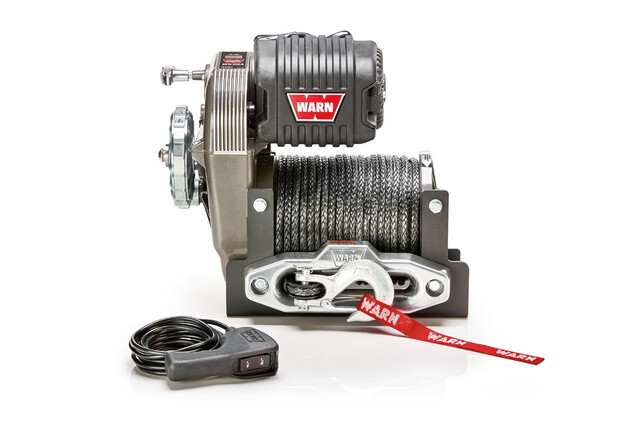

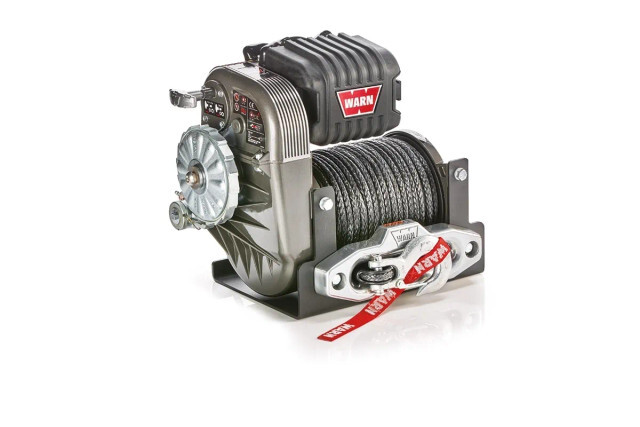

Warn M8274-S 12V 10,000lbs High Mount Winch Spydura Synthetic Rope & Polished Hawse Fairlead
$5,999.95
In Stock
The M8274–Warn Industries’ most iconic winch—is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with 150’ of 3/8” diameter lightweight, easy-to-handle Spydura synthetic rope.
Features:
- High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
- IP68 waterproof Albright electrical contactor for the ultimate in reliability and control
- Restyled high-strength polymer control pack housing for a modern twist on classic styling
- Ergonomic stainless steel clutch T-handle is easier to use than before
- Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
- Bolt-and-washer assembly replaces retaining ring on brake shaft
- Made in the USA in Clackamas, Oregon
Specifications:
- Part numbers: 106175 - M8274-S (Synthetic Rope)
- Rated line pull: 10,000 lbs. (4536 kg) single-line
- Motor: 12V DC, 6HP Series Wound
- Electrical Controls: Contactor
- Remote Control: Remote switch, 12’ (3.7m) lead
- Geartrain: 3 Stage Spur Gear
- Gear ratio: 134:1
- Clutch (freespooling): Sliding motor pinion gear
- Brake: Automatic disc type
- Drum Diameter/Length: 3.5”/8.5” (9cm/22cm)
- Rope: M8274-S: 3/8” x 150’ Spydura synthetic rope
- Fairlead: M8274-S: Forged Hawse Fairlead
- M874: Roller Fairlead
- Replacement Rope: Synthetic - 102343
- Steel Rope - 106141
- Recommended Battery: 650 CCA minimum for winching
- Battery Leads: 2 gauge, 72” (1.83m)
- Finish: Powder coat with clear coat
- Weight: 90lb (40.8kg)
(UF-WAR-00048)
SKU | UF-WAR-00048 |
Model # | 106175 |
Brand | Warn |
